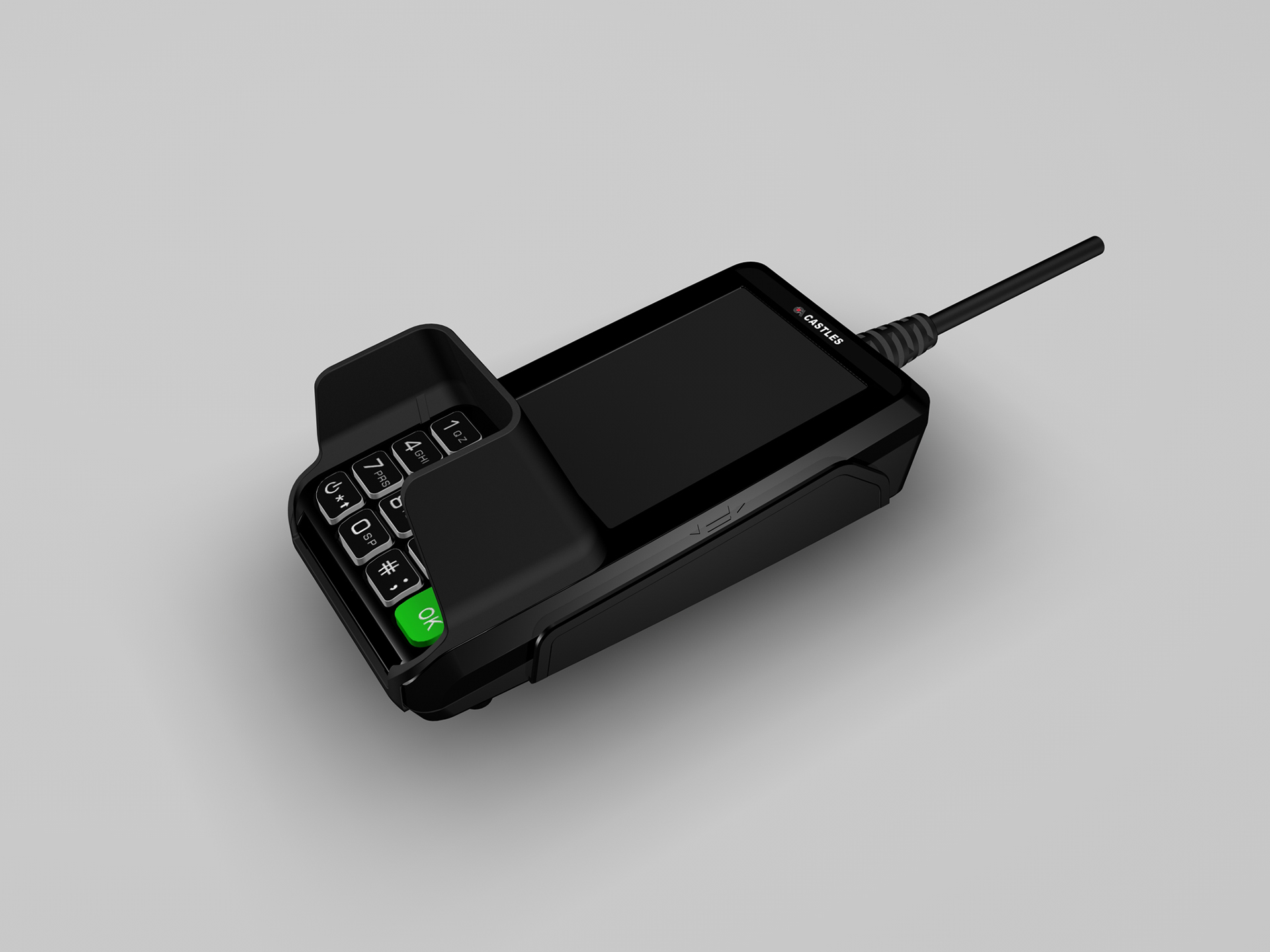

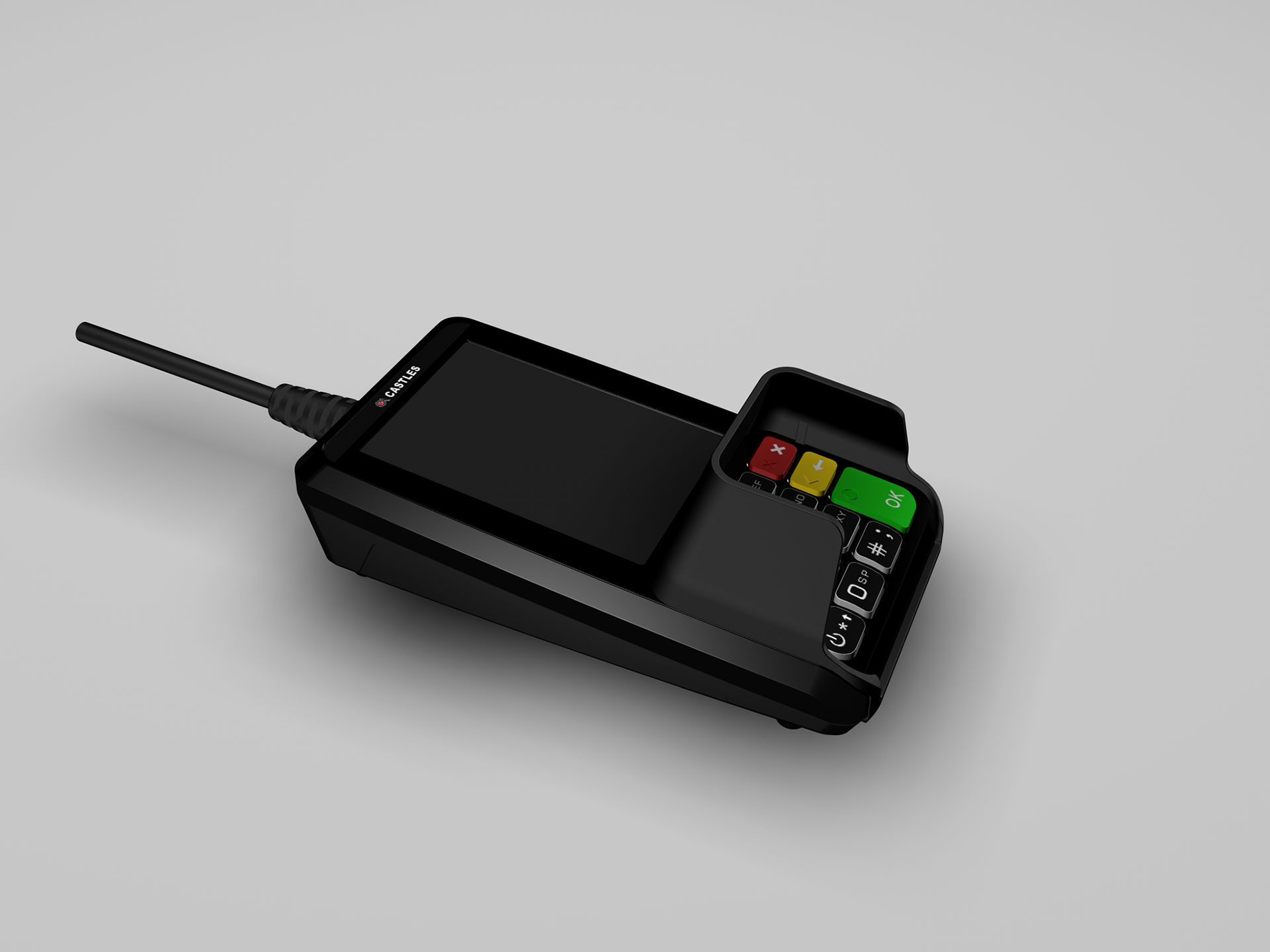

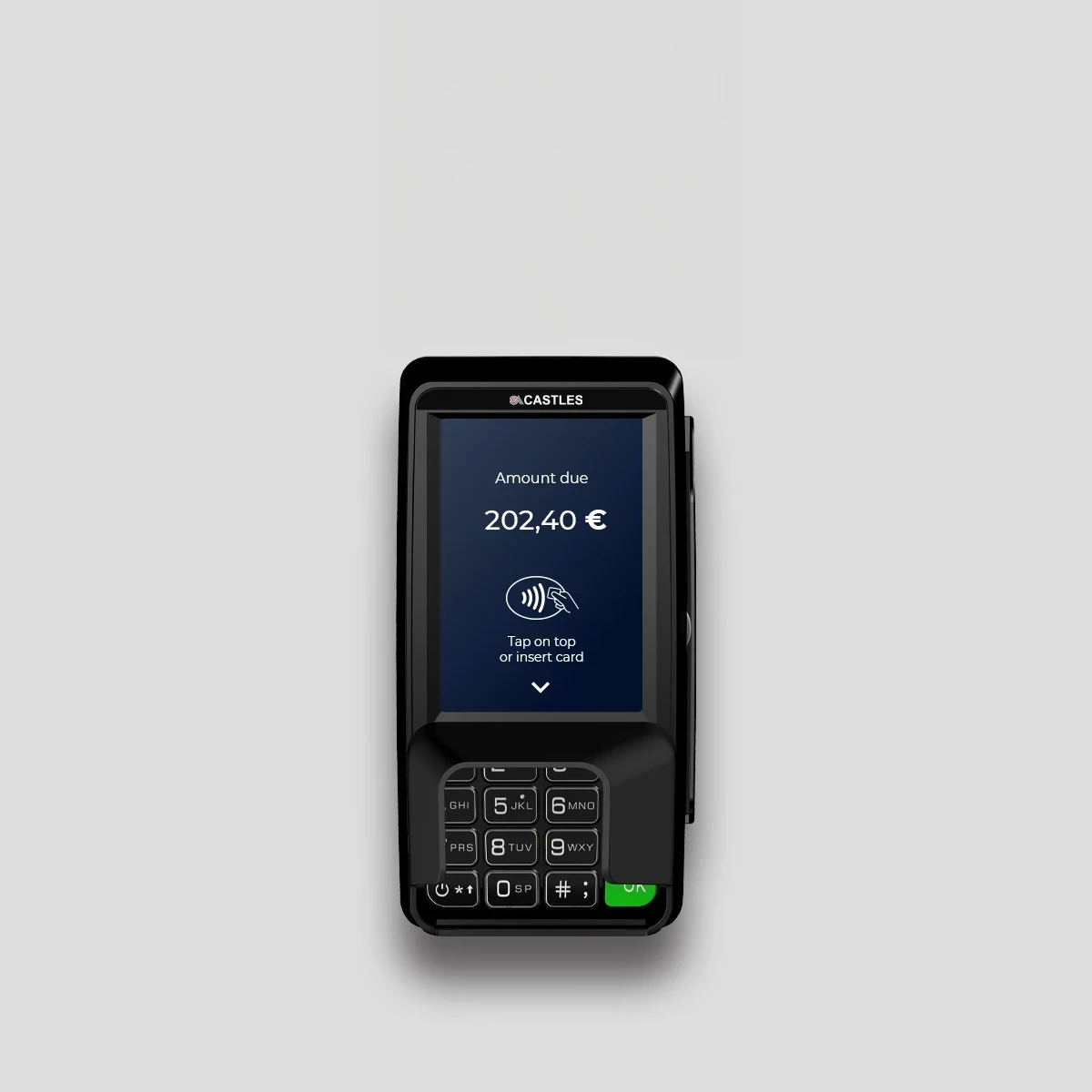

V3P3 Linux Terminal

Castles Technology’s newly designed V3P3 meets PCI PTS 6.0 requirements and offers multifunctional capabilities to optimize the checkout process.

V3P3 offers USB communication and accepts all payment types including magnetic stripe, chip card, and contactless.

With its compact design, the V3P3 is an extremely easy, safe, and secure payment device for merchants seeking a next-generation payment solution.

Technical specifications

Processor	32-bit Secure Microprocessor
Memory	Flash/RAM 256MB/128MB
Operating System	Linux
Display	3.5” Color TFT LCD with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SAM
Communication Interface Options	Wire
Audio	Buzzer \| Speaker (optional)
Keypad	15 Key
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto library
Crypto	TRNG \| DES \| T’DES \| AES \| RSA \| MK/SK \| DUKPT \| T’DES DUKPT
Power Supply	DC 9V/1A or 5V/2A
Dimensions (L x W x H)	151 x 79 x 39 (mm)
Weight	215g
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 6.X \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM
Optional Accessories	Stylus Pen, PIN Shield, USB Cable, Micro USB Cable, Ethernet Cable, RS232 Cable, 5V/2A Power Adapter
