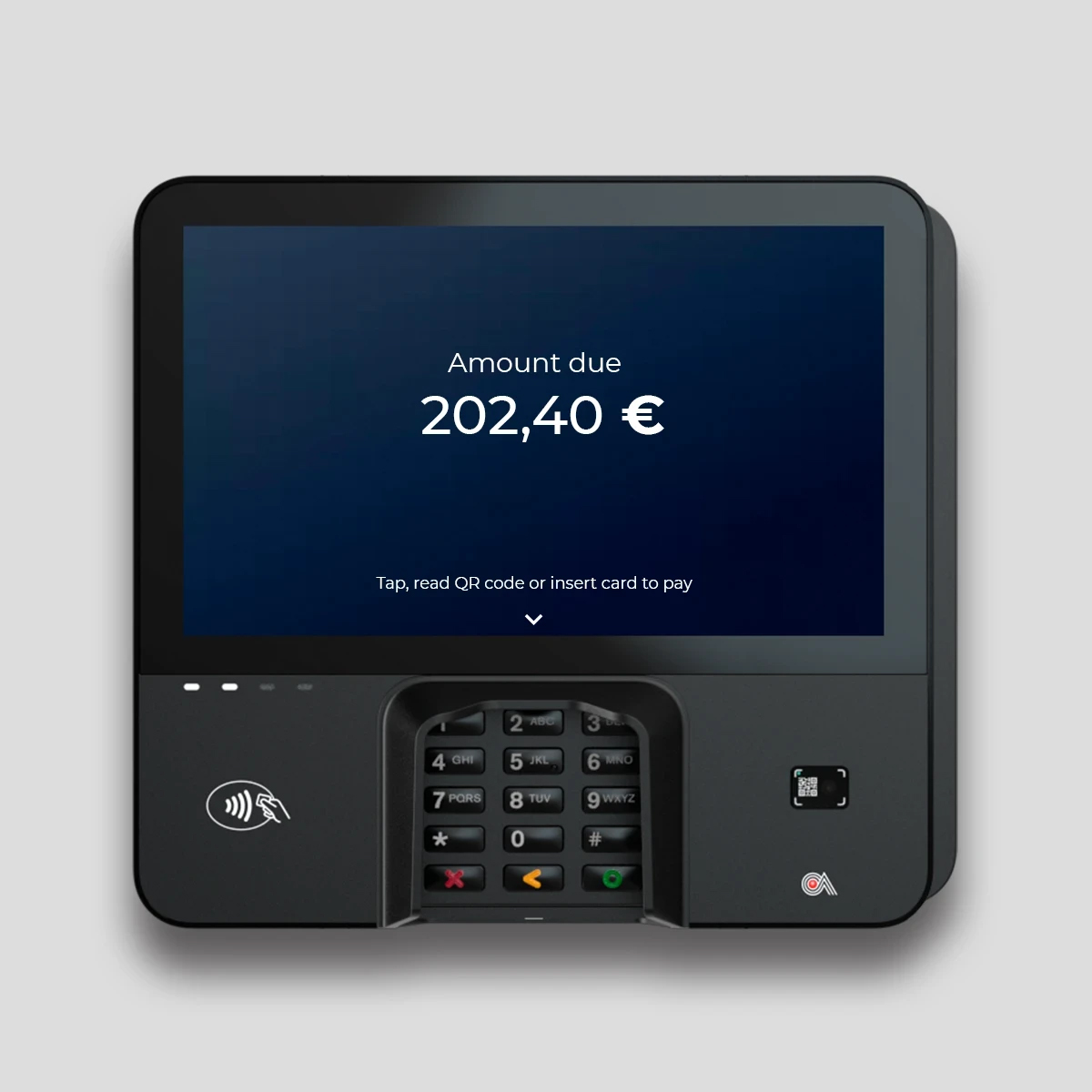

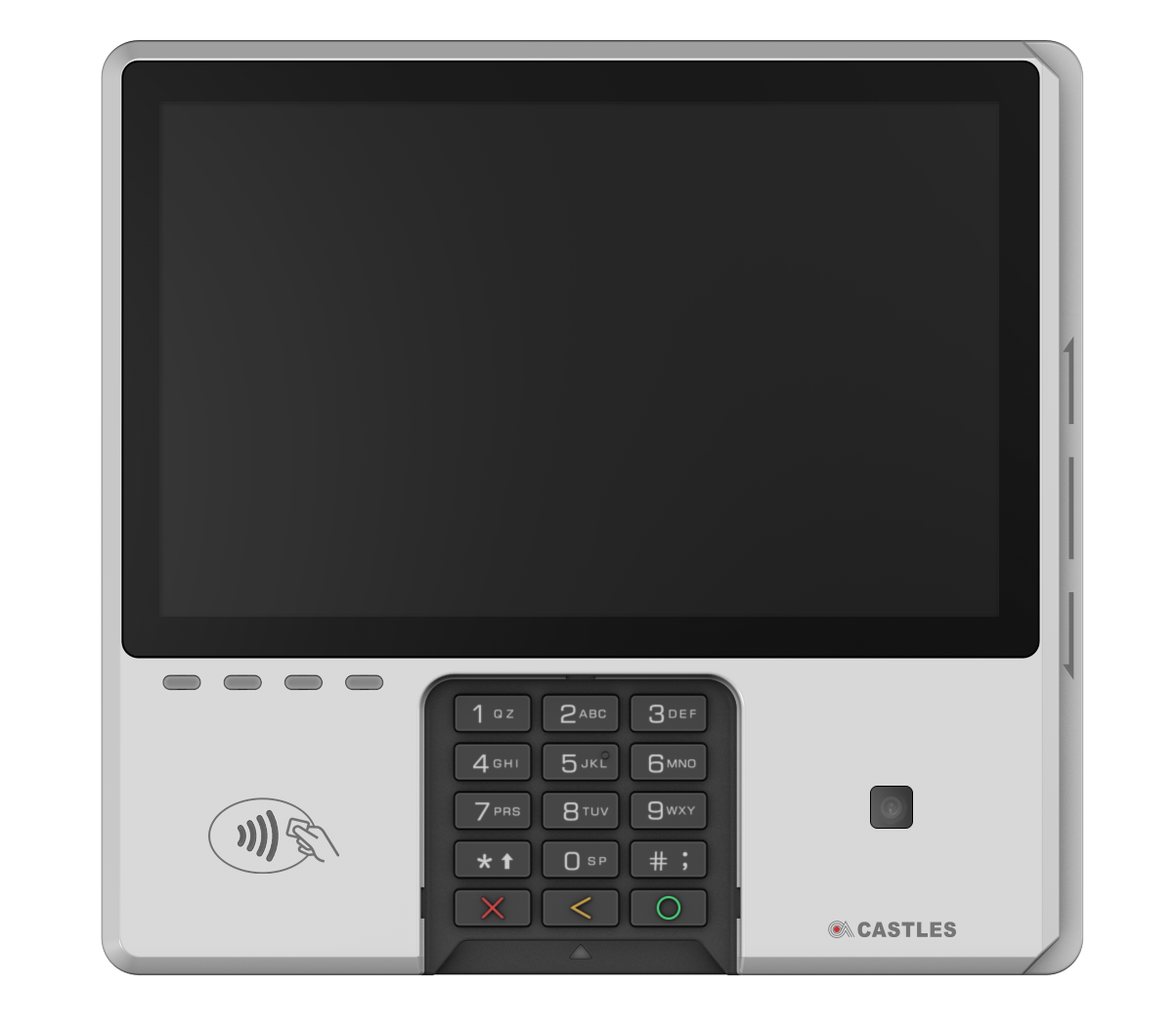

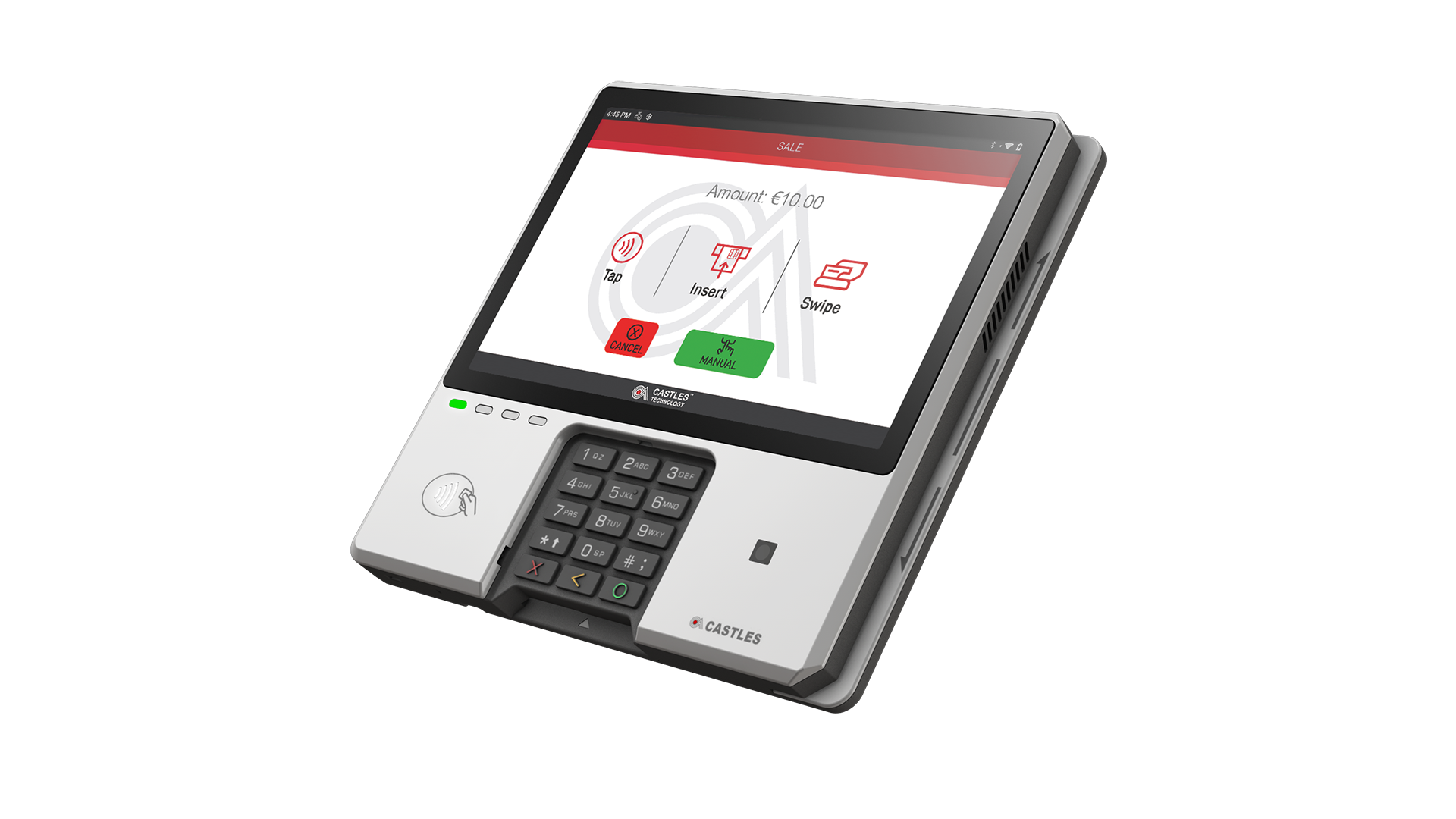

S2L Android Terminal

Castles Technology’s new all-in-one designed S2L offers multifunctional capabilities and streamlines customer’s shopping experiences. S2L comes with several communication options including USB, RS232, WLAN, Bluetooth, and Ethernet.

download PDF

Working with an optional stand, S2L provides a perfect solution to simplify the shopping process and successfully make the payment easier.

Engineered to meet today’s demands of easy-to-use, multi-function, and large touch screen, S2L is an ideal product for a wide range of environments, such as restaurant, grocery store, and shopping center.

Technical specifications

Processor	Octa-Core 1.8GHz CPU + Secure Processor
Memory	Flash/RAM 16GB/2GB
Operating System	Android 10
Display	8” Color TFT with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SAM
Communication Interface Options	Wire, Wireless
Audio	Speaker \| Headphone Jack \| Microphone
Keypad	15 Key
Camera	8MP Auto Focus with Flash LED
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto library
Crypto	TRNG \| DES \| TDES \| AES \| RSA \| MK/SK \| DUKPT
Power Supply	DC 12V/1A
Dimensions (L x W x H)	210 x 200 x 29.5 mm
Weight	748 g
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 6.x \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM
Optional Accessories	Stand, Barcode Reader, Magic Box
