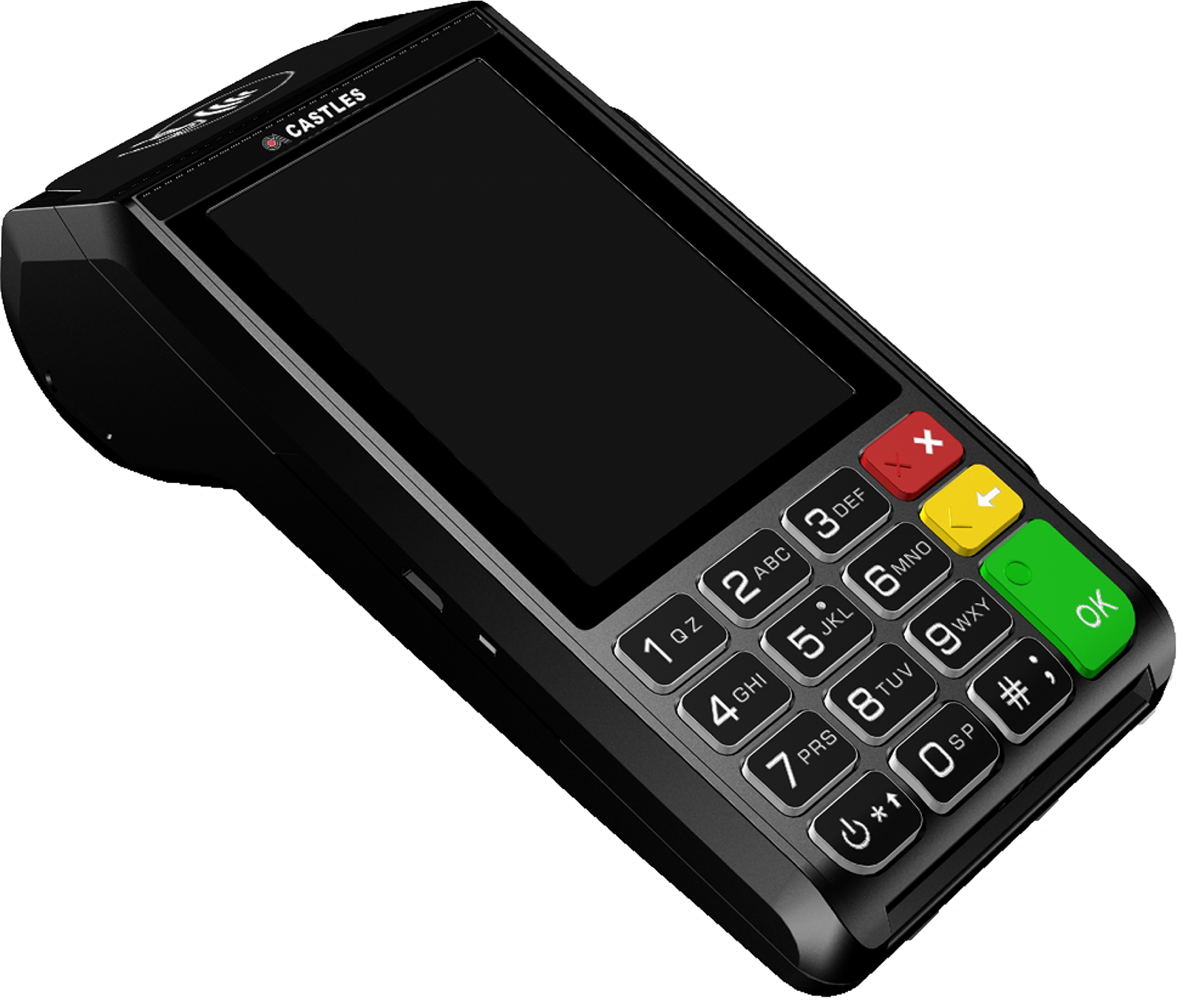

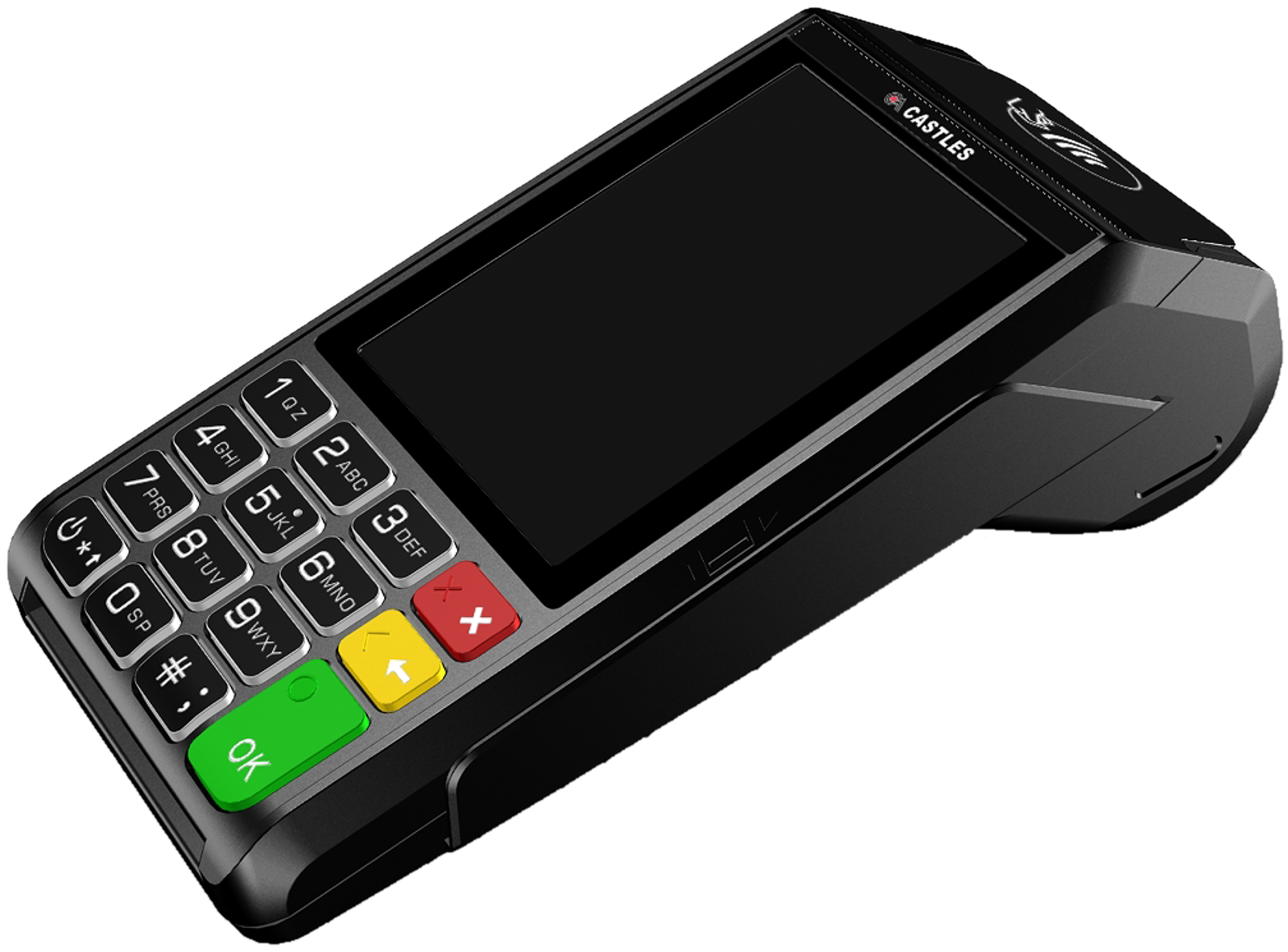

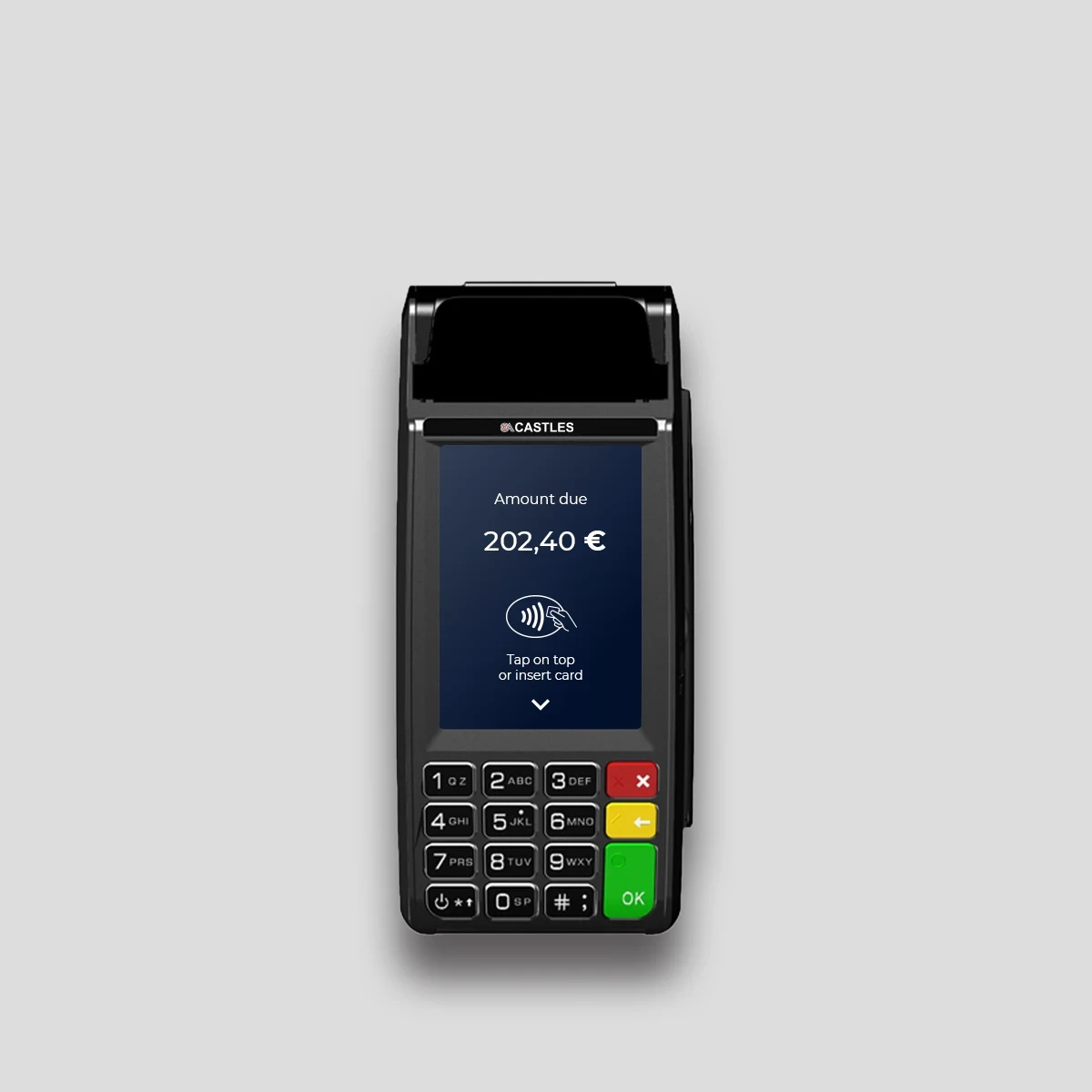

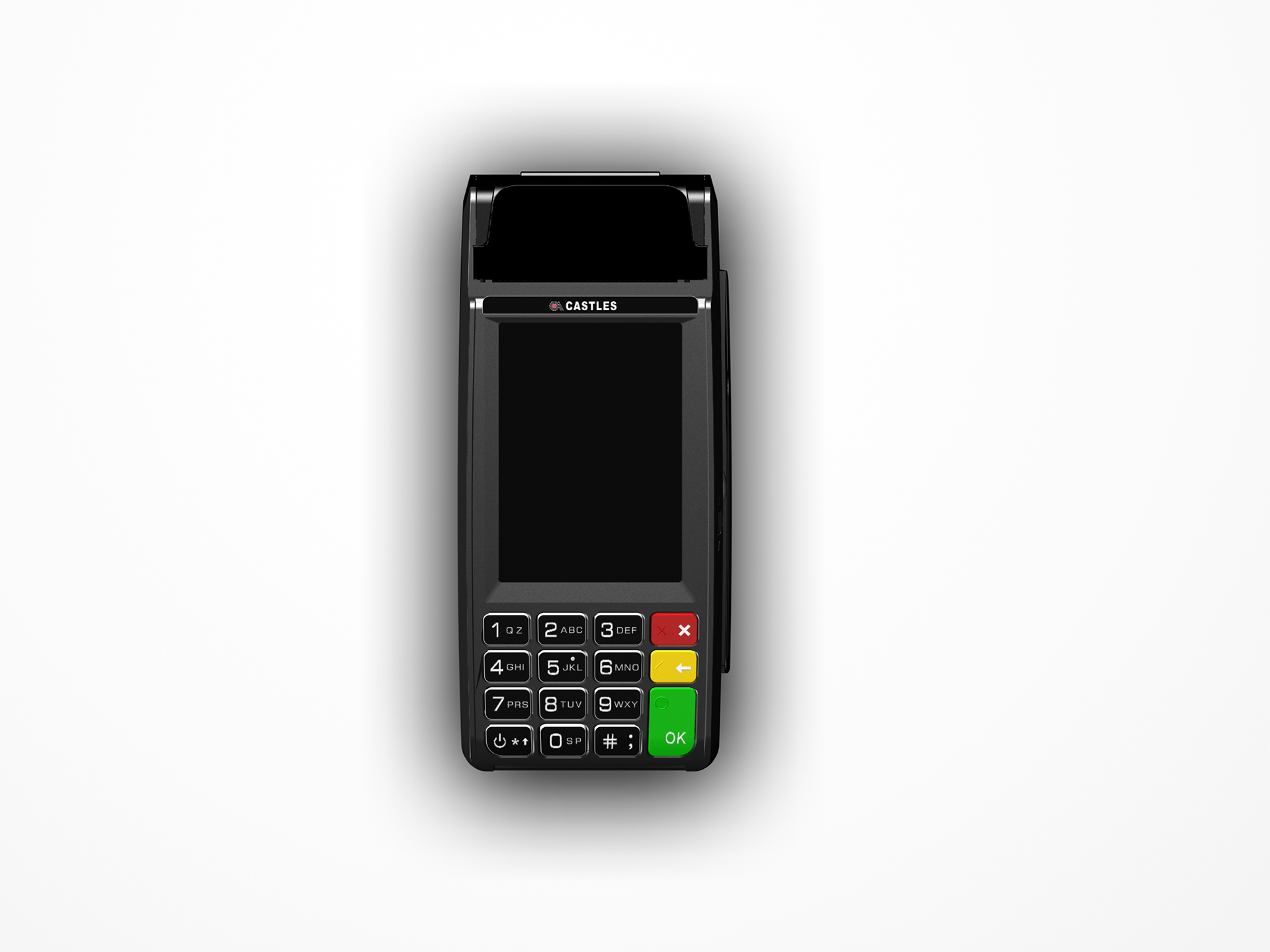

V3M2 Linux Terminal

Castles Technology’s newly designed V3M2 device gives you mobile capability for your business. V3M2 offers options of Wi-Fi, UMTS, GPRS, CDMA, Bluetooth and USB communications and also accepts all payment types-magnetic stripe, contact, contactless and barcode scanner.

V3M2 is an ideal, secure, reliable device to mobilize your payments.

download PDF

Technical specifications

Processor	32-bit Secure Microprocessor
Memory	Flash/RAM 256MB/128MB
Operating System	Linux
Display	3.5” Color TFT LCD with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SIM, SAM
Communication Interface Options	Wire, Wireless
Indicators	Contactless LED
Audio	Buzzer \| Speaker (optional)
Keypad	15 Keys with Backlight
Printer	Paper Roll Size: 48mm (W) x Ø40mm \| Print Speed: 100mm/sec
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto
Crypto	TRNG \| DES \| T’DES \| AES \| RSA \| MK/SK \| DUKPT \| T’DES DUKPT
Power Supply	DC 5V/2A \| Battery 3100mAh Li-Ion
Dimensions (L x W x H)	170.4 x 78.4 x 60 mm
Weight	345g
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 5.X \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM \| PBOC L1/L2
Optional Accessories	PIN Shield, Charging Cradle, Bardcode Reader
