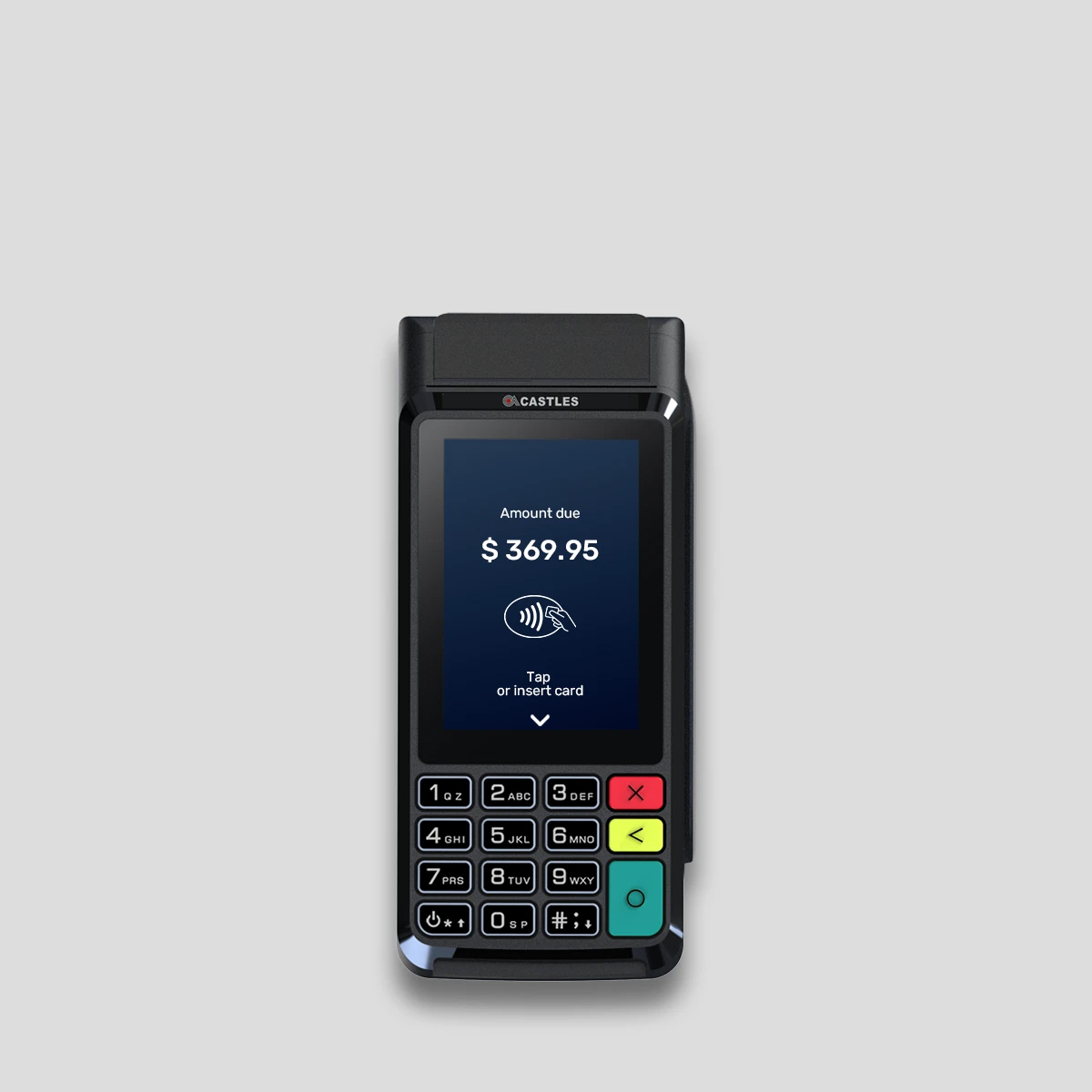

V1M Linux Terminal

The V1M offers multiple connectivity options, including Wi-Fi, 4G LTE, GPRS, Bluetooth, and USB, ensuring reliable communication for payments on the go.

download PDF

It supports all payment types – magnetic stripe, contact, contactless, and has an optional built-in camera for barcode scanning. With an integrated printer and compliance with the latest PCI 6.x security standards, the V1M is a secure and versatile solution for mobile payments.

Technical specifications

Processor	ARM Cortex 1.2GHz + Secure Microprocessor
Memory	Flash: 4GB \| RAM: 128MB/512MB(option) \| Micro-SD Socket
Operating System	Linux
Display	3.5” Color LCD with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SIM, SAM
Communication Ports	USB-C
Wireless	4G LTE, 2G, Wi-Fi, Bluetooth
Audio	Speaker, Buzzer
SIM & SAM	2 SIM + 2 SAM \| eSIM(option)
Keypad	15 Backlit Keys
Camera	Rear: 2MP FF (option)
Printer	Paper Roll Size: 58mm (W) x Ø40mm \| Print Speed: 90mm/sec
Power Supply	DC 5V/2A \| Battery 3100mAh Li-Polymer
Dimensions (L x W x H)	170 x 73 x 62 mm
Weight	345g
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
CasHUB Support	Yes
Optional Accessories	Charging Cradle, USB Cable, 5V/2A Power Adapter
