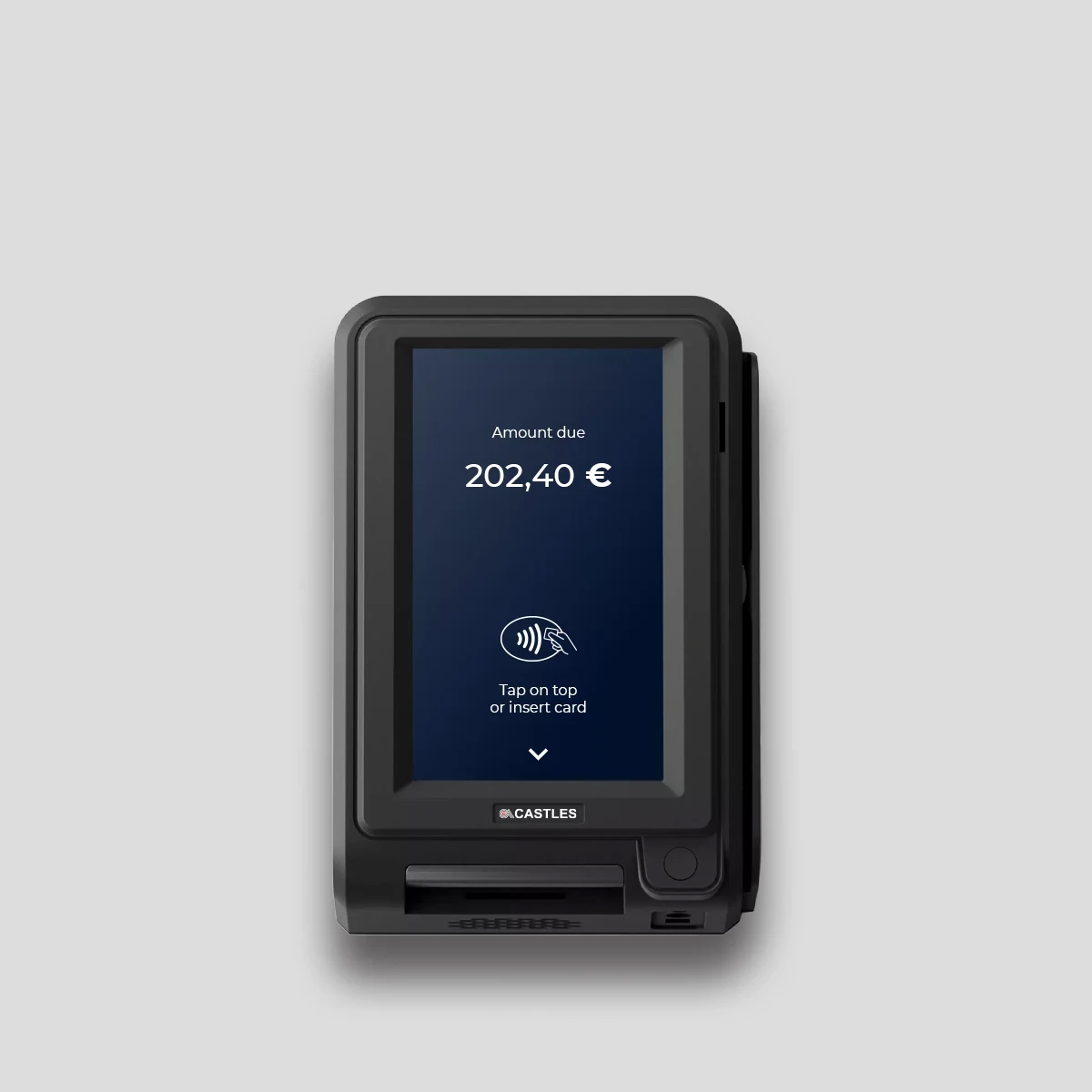

S1U2 Android Terminal

Castles Technology’s newly designed S1U2 offers multifunctional capabilities for your unattended payment needs such as vending, ticketing, multimedia kiosks, public transportation, laundromats, and other self-service solutions.

download PDF

The S1U2 is based on a secure Android platform and has integrated magnetic stripe, chip and contactless card reader functions.

The S1U2 is a perfect, durable and cost-effective device for any unattended business needs.

Technical specifications

Processor	Quad-Core 1.3GHz CPU+ Secure Processor
Memory	Flash/RAM 16GB/2GB
Operating System	Android 10
Display	5” Color TFT LCD with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SIM, SAM
Communication Interface Options	Wire, Wireless
Audio	Buzzer \| Speaker \| Microphone
Keypad	Virtual Keypad / PIN on Glass
Camera	5MP Auto Focus with Flash LED
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto library
Crypto	TRNG \| DES \| TDES \| AES \| RSA \| MK/SK \| DUKPT
Power Supply	DC 9-48V
Dimensions (L x W x H)	168 x 110.2 x 55.5 mm
Weight	701 g
Operating Temperature	-20°C to 65°C
Storage Temperature	-35°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 6.x \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM
Optional Accessories	Barcode Reader
