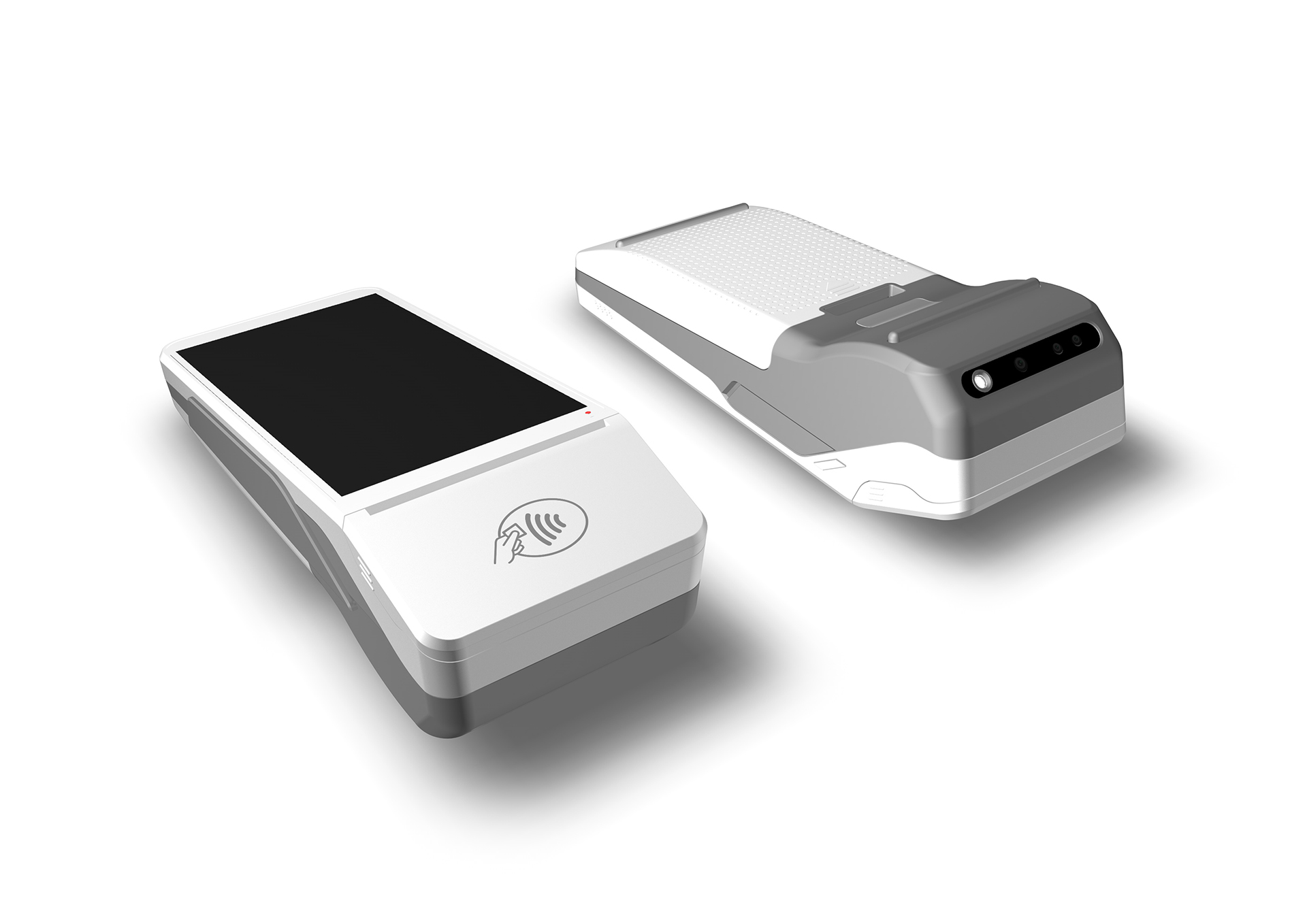

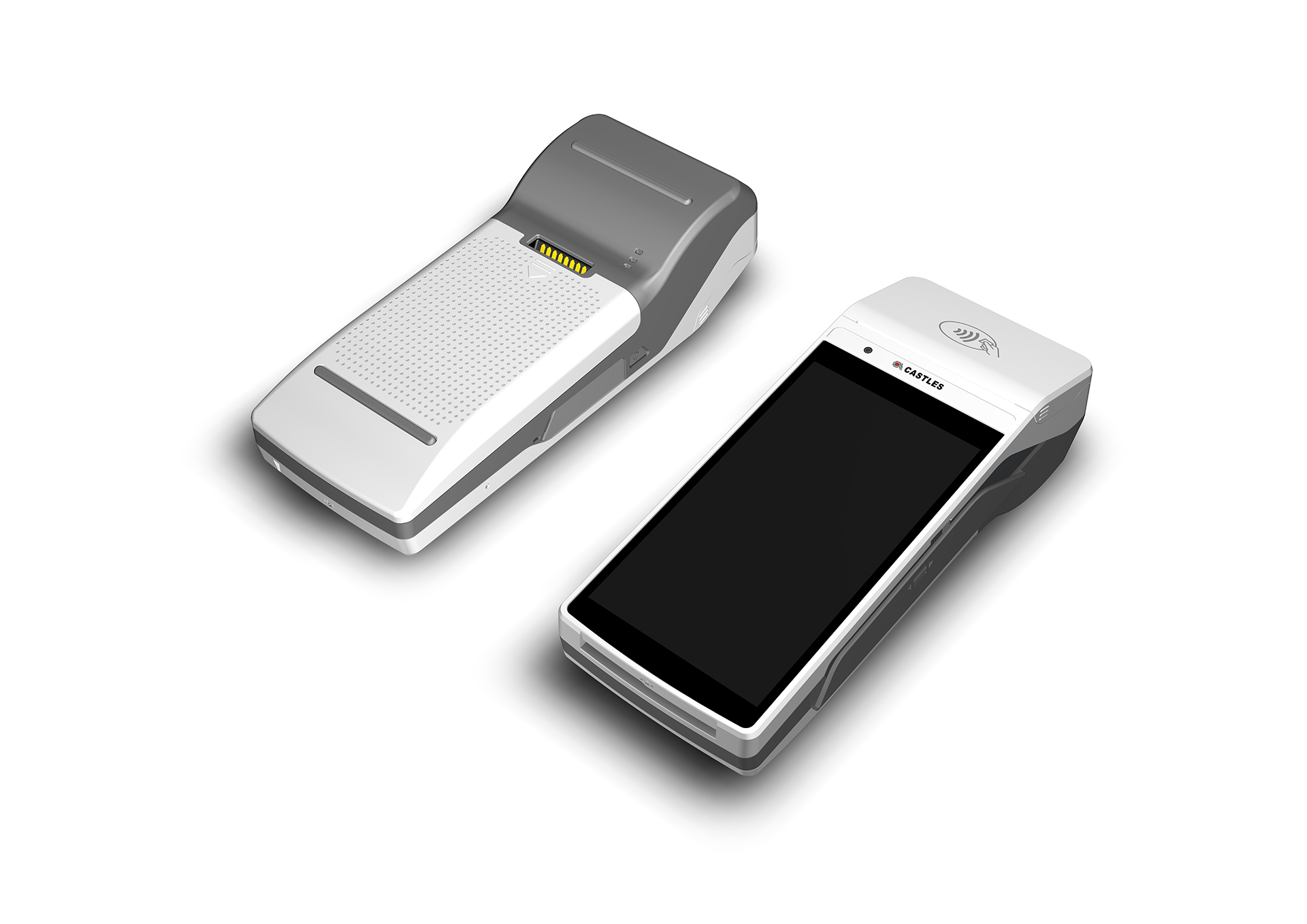

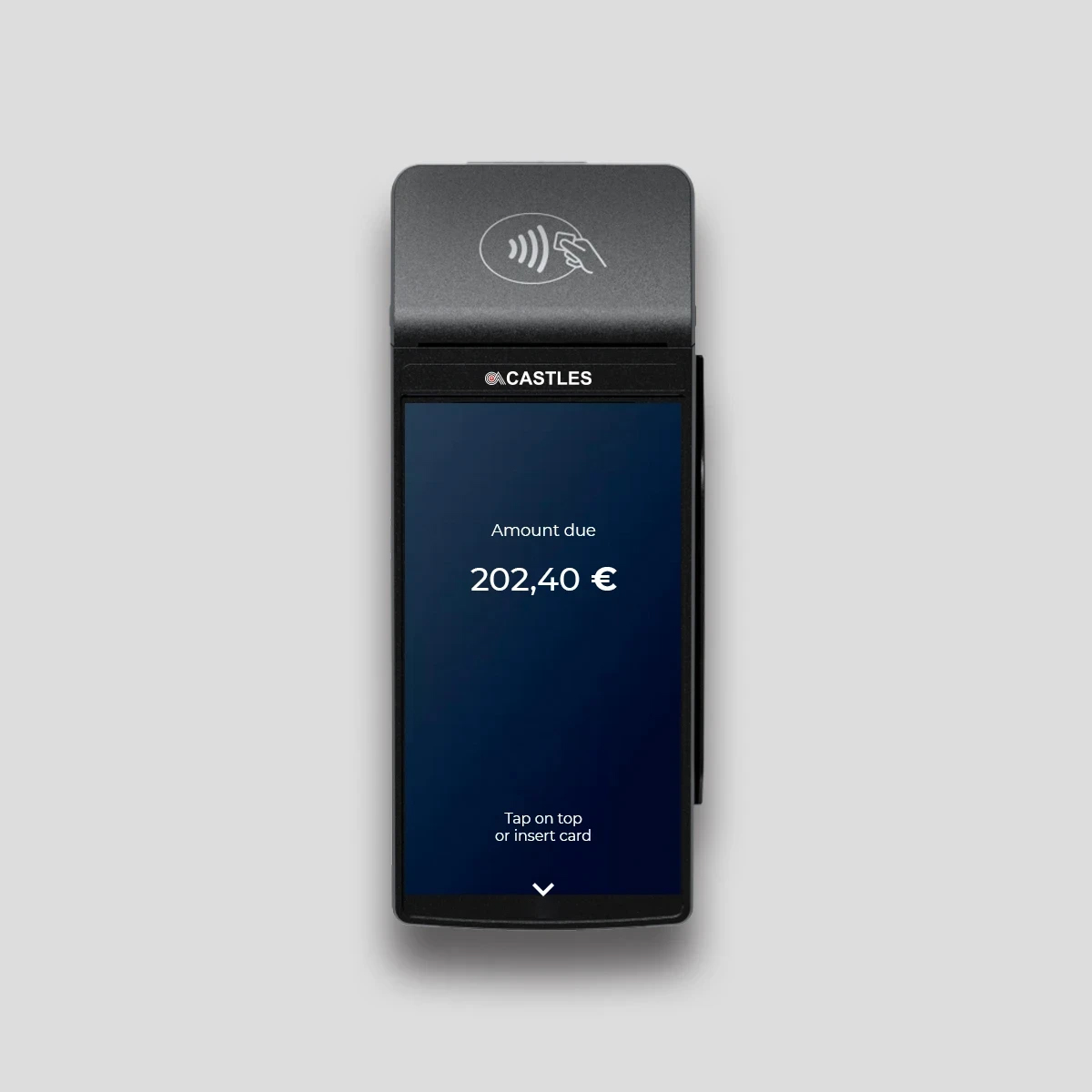

S1F2 Android Terminal

Get the benefits of an intuitive interface for maximum comfort and take full advantage of Android 9 OS with your own apps, marketplace or TMS, and see your sales increase. Add memory from 8GB/1GB to 16GB/2GB (Flash/RAM) for more applications.

Any payment method, wherever you are, from cards to e-wallets and contactless.

download PDF

Technical specifications

Processor	ARM A53 Quad-Core 1.3GHz Processor + M3 Secure Processor
Memory	Flash/RAM 8GB/2GB \| Micro-SD
Operating System	Android 10
Display	5.5” Color TFT with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SIM, SAM
Communication Interface Options	Wire, Wireless
Audio	Speaker \| Headphone Jack \| Microphone
Keypad	Virtual Keypad / PIN on Glass
Camera	5MP Auto Focus Rear Camera \| 2MP Fixed Focus Front Camera (optional)
Printer	Paper Roll Size: 57mm (W) x Ø40mm \| Print Speed: 100mm/sec
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto library
Crypto	TRNG \| DES \| T’DES \| AES \| RSA \| MK/SK \| DUKPT
Power Supply	DC 5V/2A \| Battery 6000mAh/3.7V Li-ion
Dimensions (L x W x H)	203.9 x 80 x 56.7 (mm)
Weight	492 g
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 6.x \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM
Optional Accessories	Charging Cradle, Barcode Reader, USB Cable, 5V/2A Power Adapter, Communication Cradle
