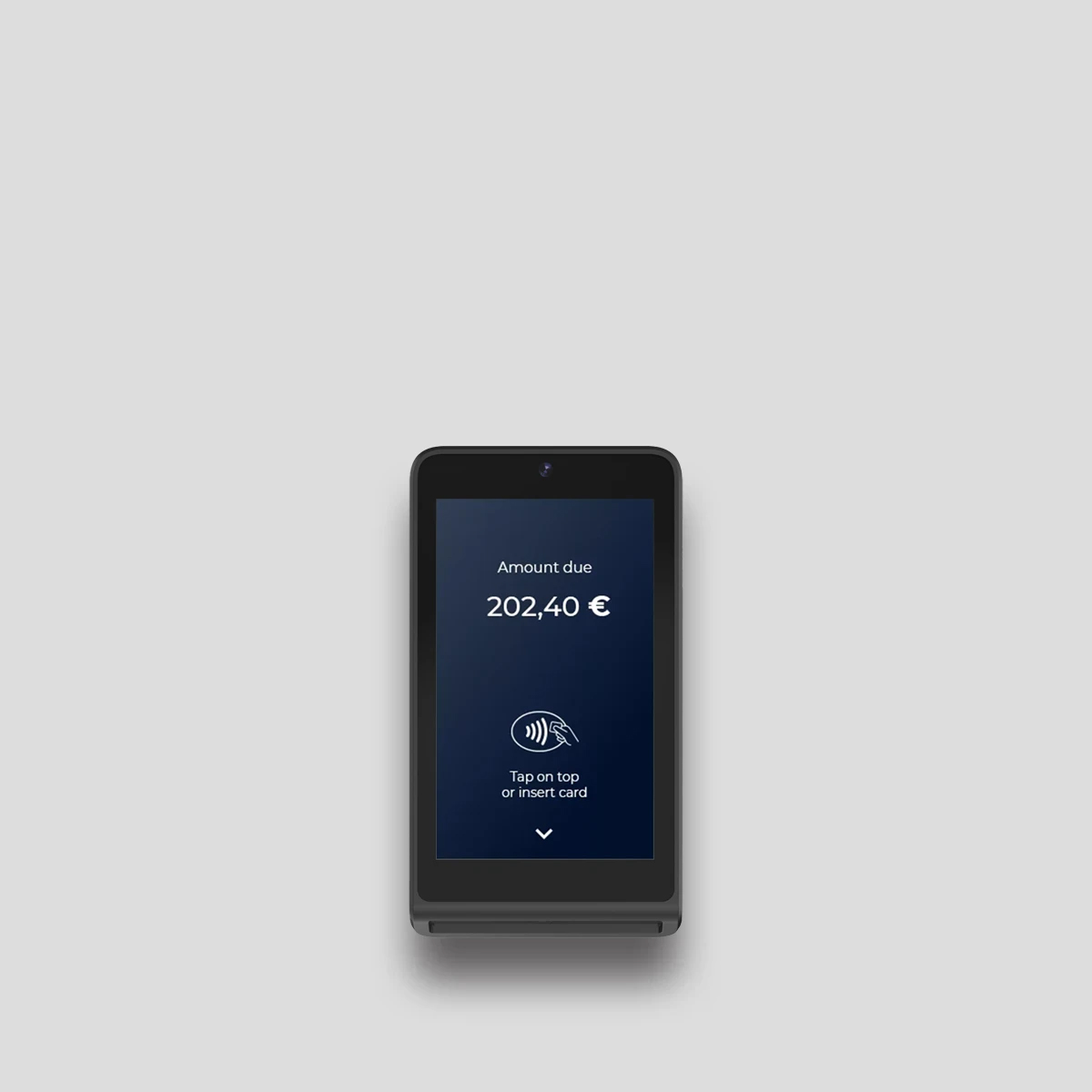

S1MINI2 Android Terminal

Introducing the S1MINI2 by Castles Technology – a compact and robust POS terminal designed for businesses on the move.

Built on a secure Android platform, the S1MINI2 delivers fast and reliable transactions at an affordable cost, making it the perfect choice for small merchants and mobile payment scenarios like taxis, delivery services, outdoor vendors and more.

Technical specifications

Processor	ARM A53 Quad-Core 2.0GHz + Secure Processor
Memory	Flash: 8GB/32GB(option) \| RAM: 2GB
Operating System	Android 13
Display	4" Color Display with Capacitive Touch Screen
Card Reader	Smart Card, Contactless
Communication Ports	USB-C
Wireless	4G LTE, 3G, 2G, Wi-Fi, Bluetooth
Positioning	GPS, GLONASS, BEIDOU, GALILEO
Audio	Speaker
SIM & SAM	1 SIM + eSIM (option) \| 1 SAM
Keypad	Onscreen Virtual Keypad
Camera	Front: 0.3MP FF
Power Supply	DC 5V/2A \| Battery 2000mAh 3.9V Li-ion, 7.8Wh
Dimensions (L x W x H)	120 x 66 x 20 mm
Weight	160g
Operating Temperature	-10°C to 50°
Storage Temperature	-20°C to 70°
Operating Humidity	5% to 90% Non-condensing
Storage Humidity	5% to 90% Non-condensing
Certification	PCI PTS 6.x \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM
CasHUB Support	Yes
Optional Accessories	USB Cable, 5V/2A Power Adapter
