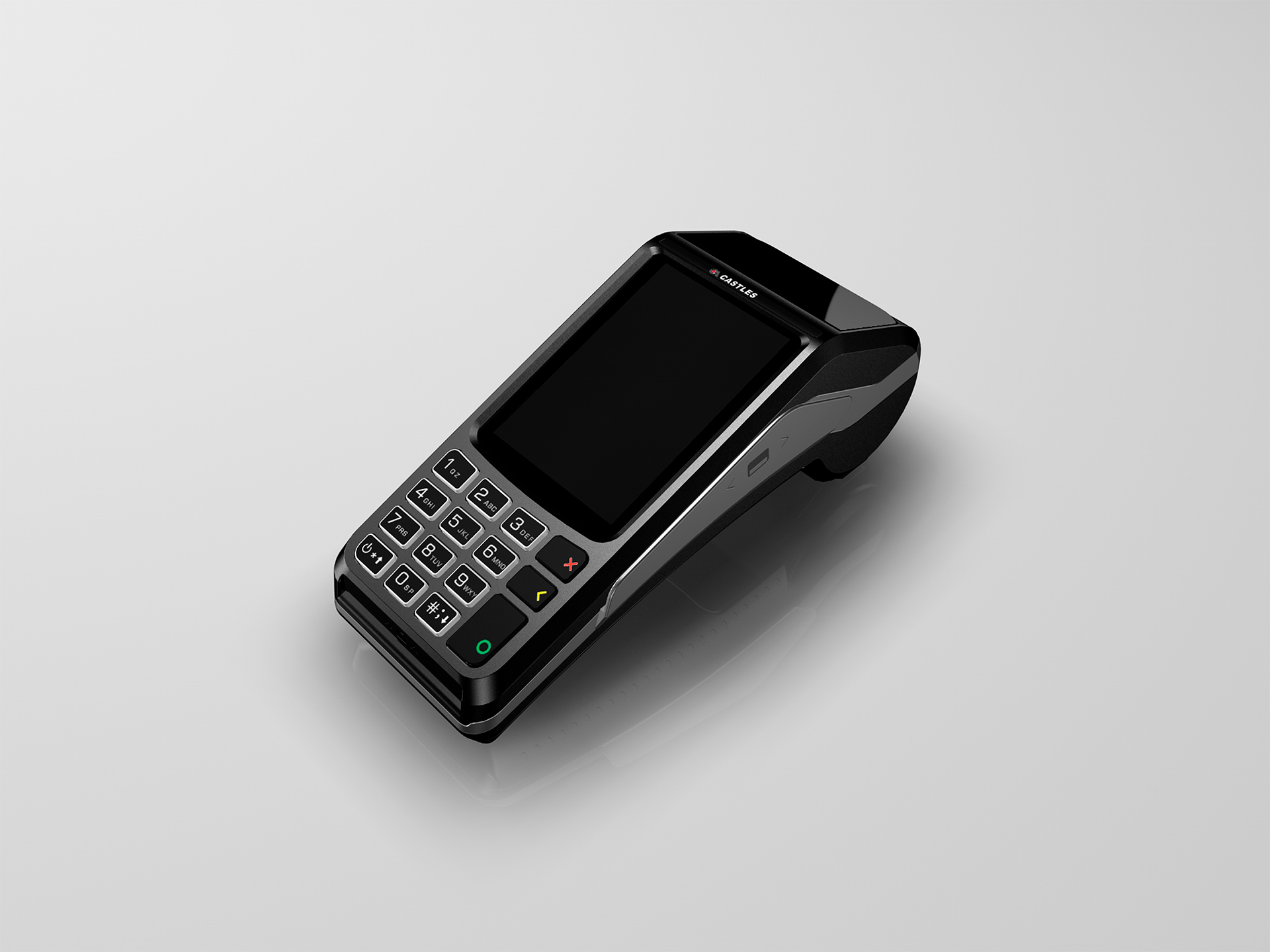

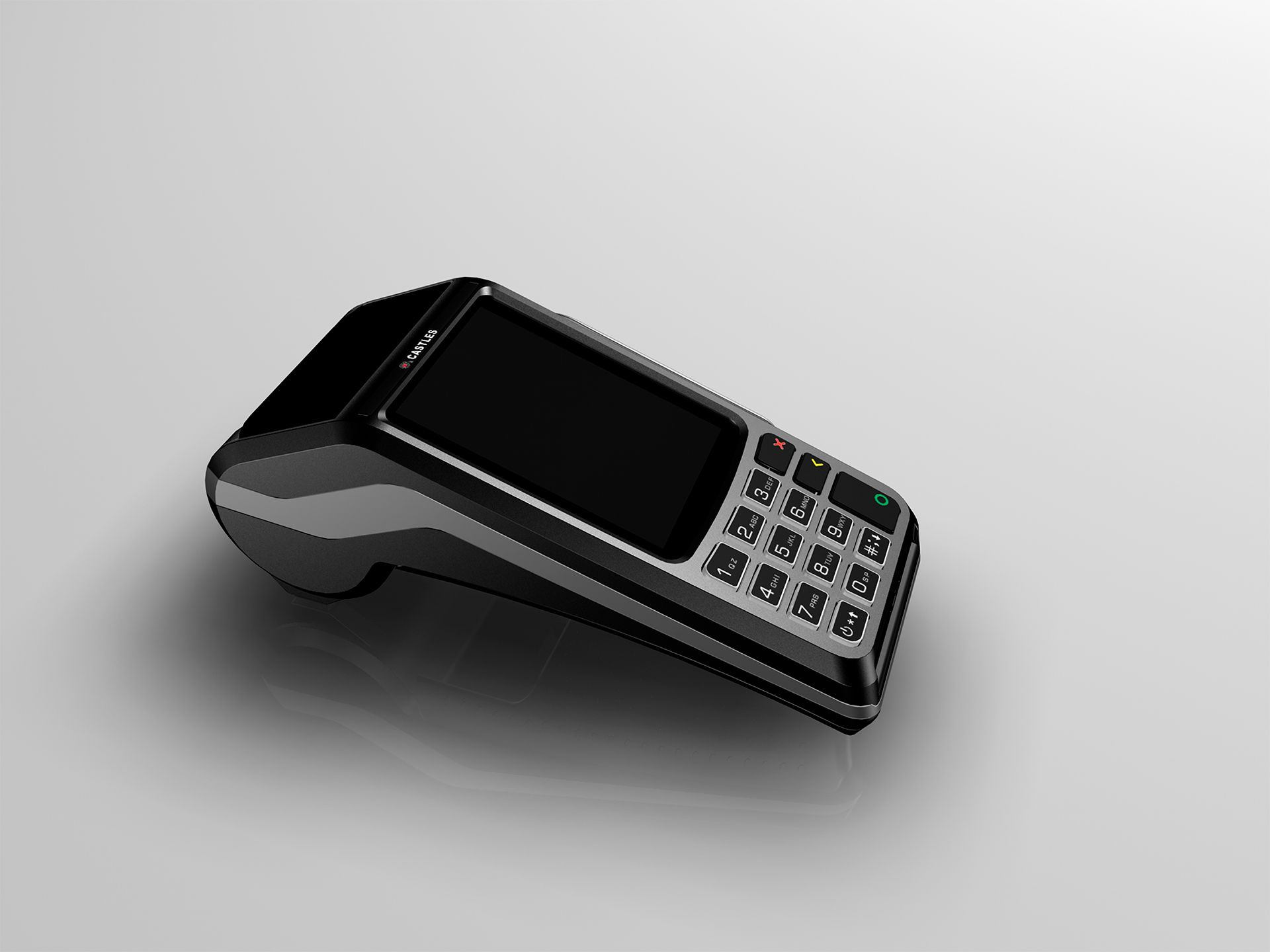

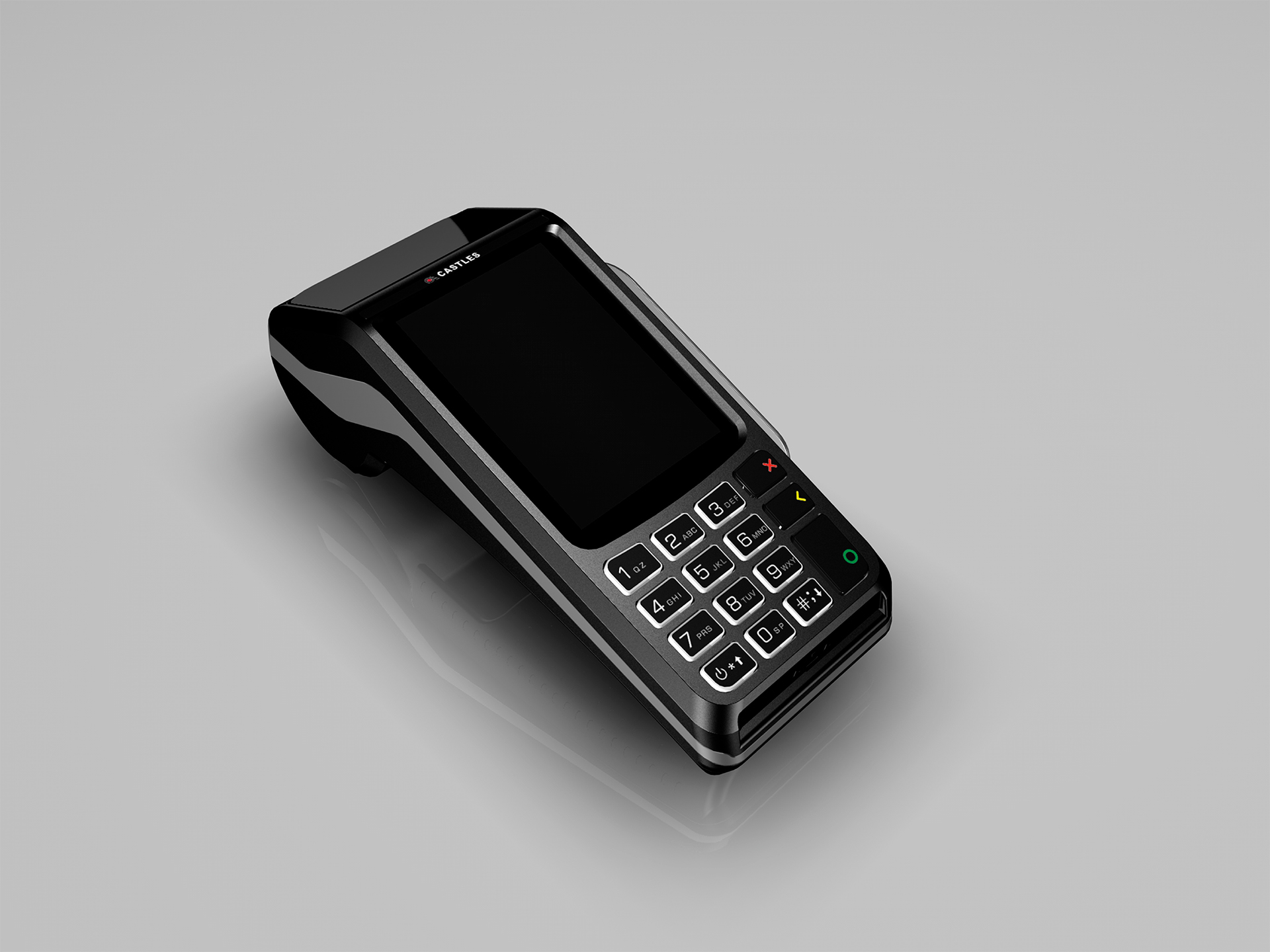

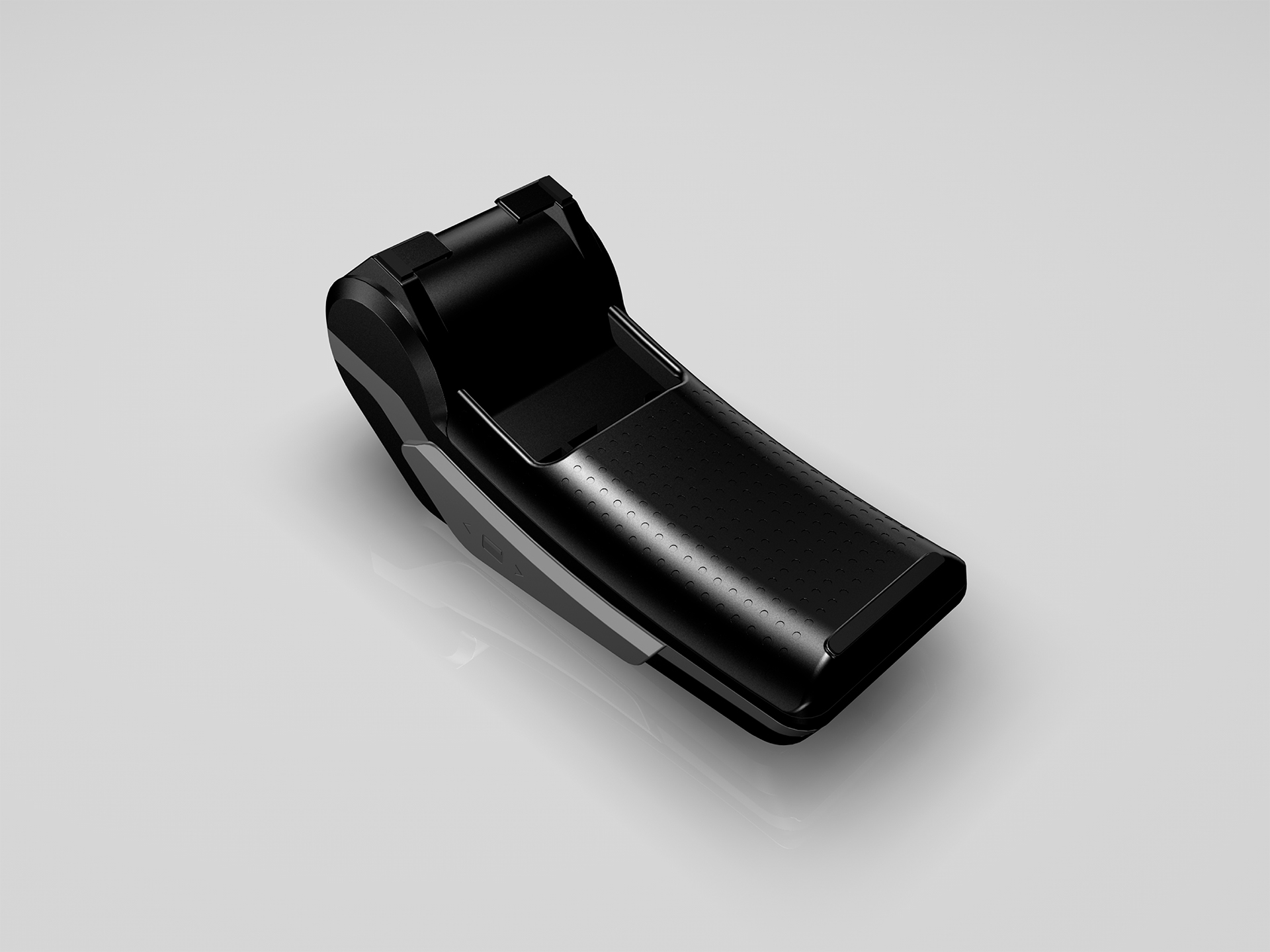

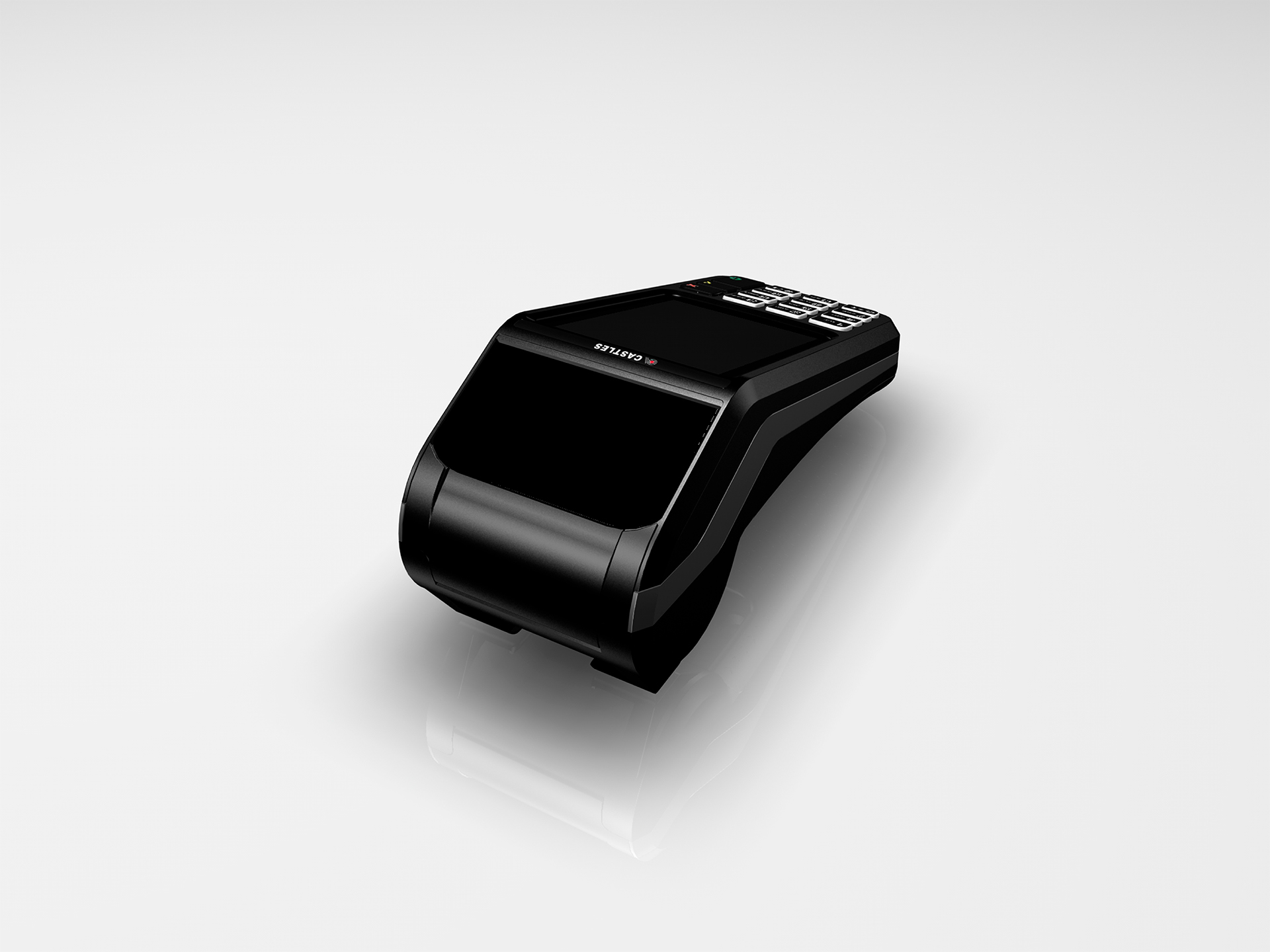

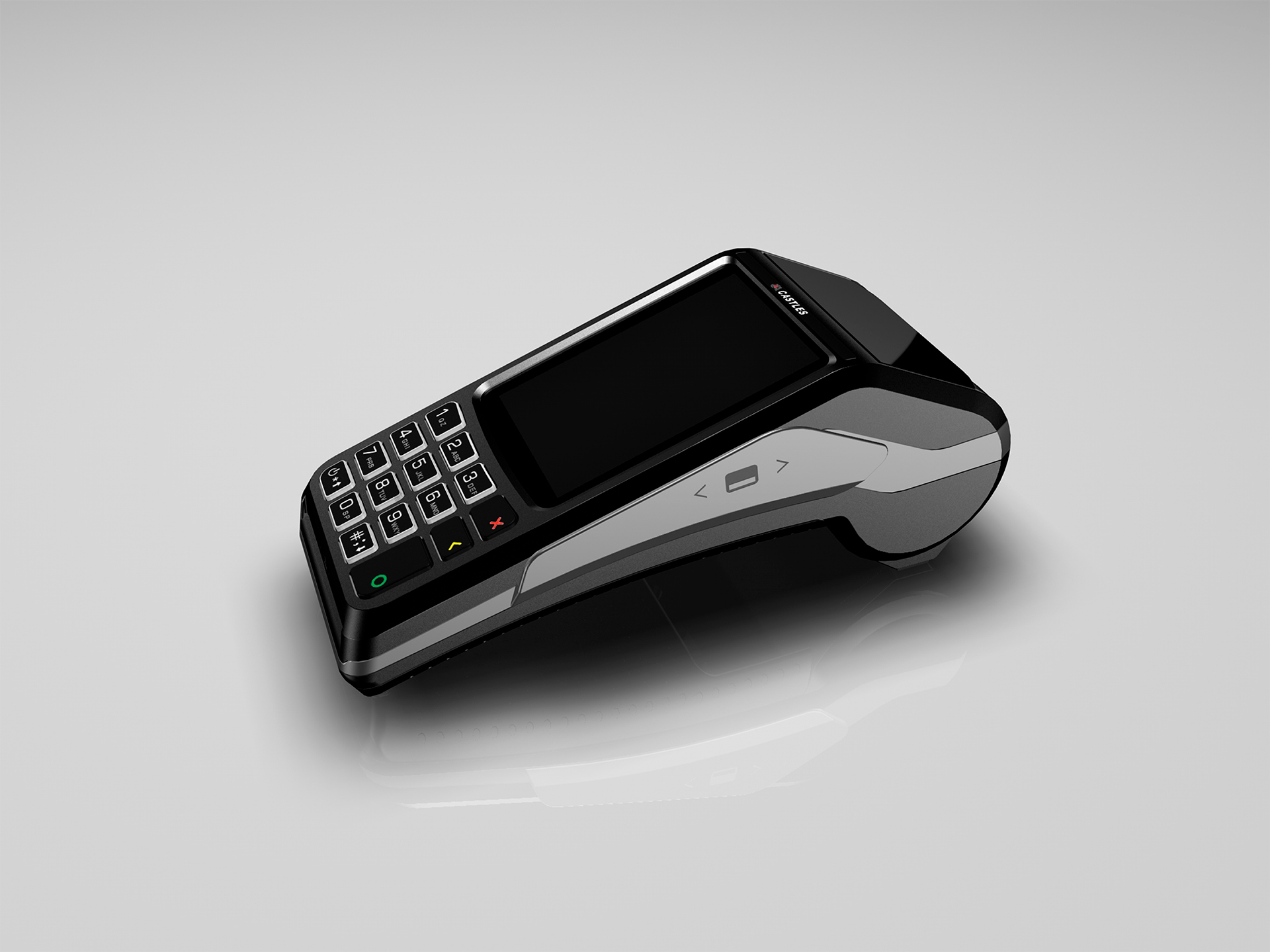

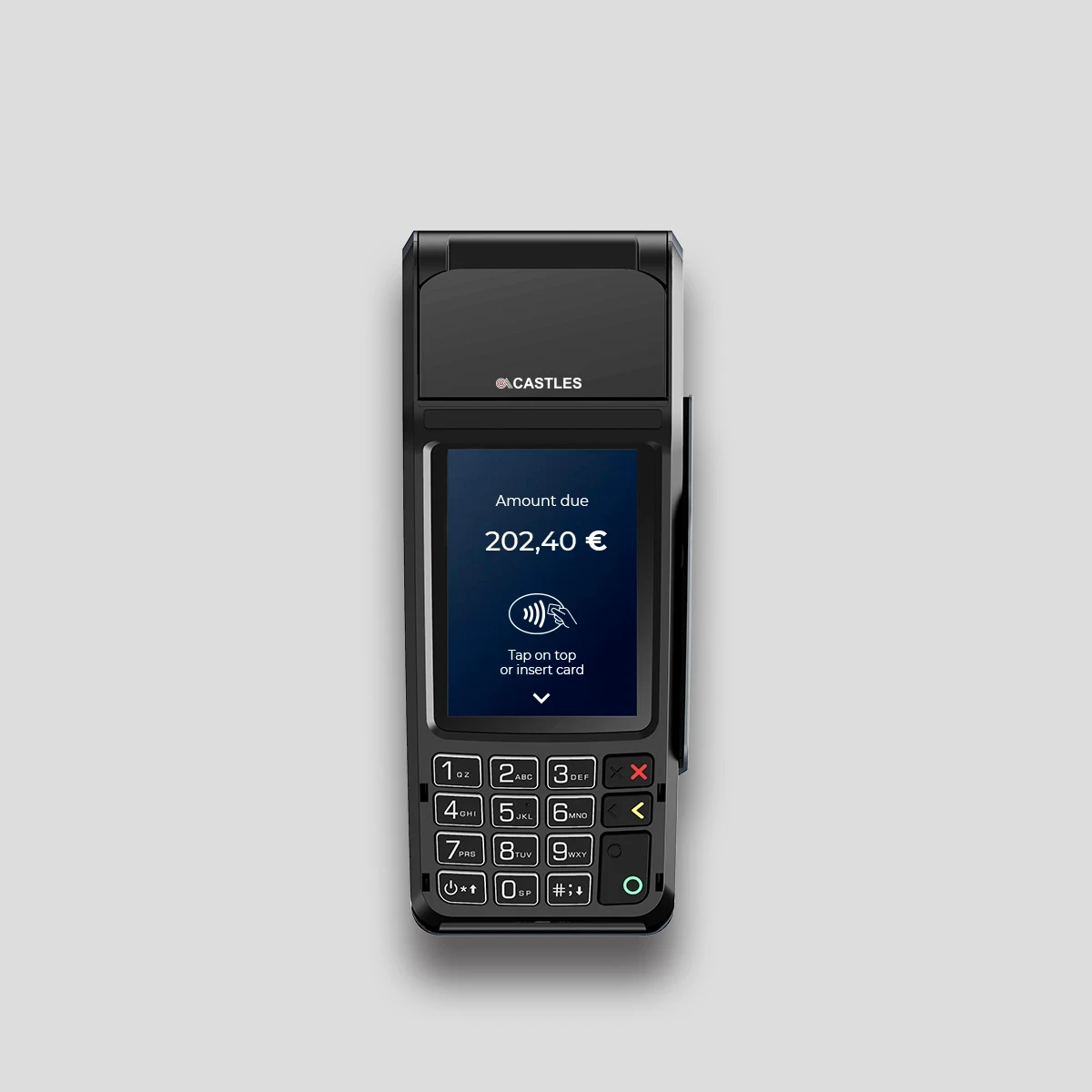

V3CT3 Linux Terminal

Castles Technology’s newly designed V3CT3 device is built to last. It enables processing at lightning speeds with its powerful microprocessor. This latest countertop model also comes with an optional battery feature allowing mobility wherever you go.

download PDF

V3C2 offers options for Wi-Fi, UMTS, CDMA, Bluetooth and USB communications and also accepts all payment types – magnetic stripe, contact and contactless. V3CT3 is an ideal, secure, lasting and reliable device that will exceed your payment expectations.

Technical specifications

Memory	Flash/RAM 256MB/128MB \| Micro-SD (optional)
Operating System	Linux
Display	3.5” Color TFT LCD with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SIM, SAM
Communication Interface Options	Wire, Wireless
Indicators	Contactless LED
Audio	Buzzer \| Speaker (optional)
Keypad	15 Keys with Backlight
Printer	Paper Roll Size: 57mm (W) x Ø50mm \| Print Speed: 100mm/sec
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto library
Crypto	TRNG \| DES \| T’DES \| AES \| RSA \| MK/SK \| DUKPT \| T’DES DUKPT
Power Supply	DC 9V/4A

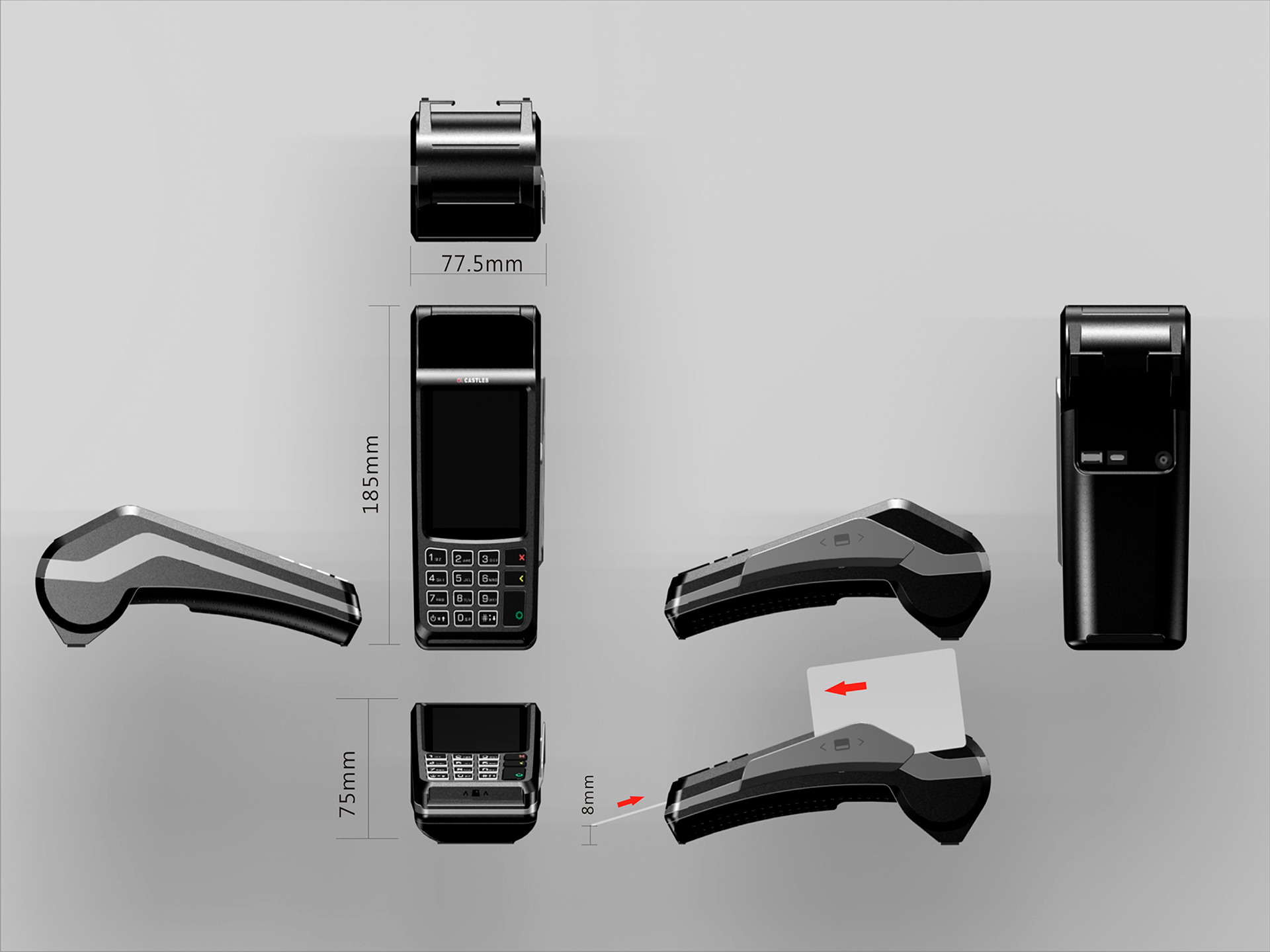

Dimensions (L x W x H)	185 x 75 x 84 (mm)
Weight	350 g
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 6.x \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM
