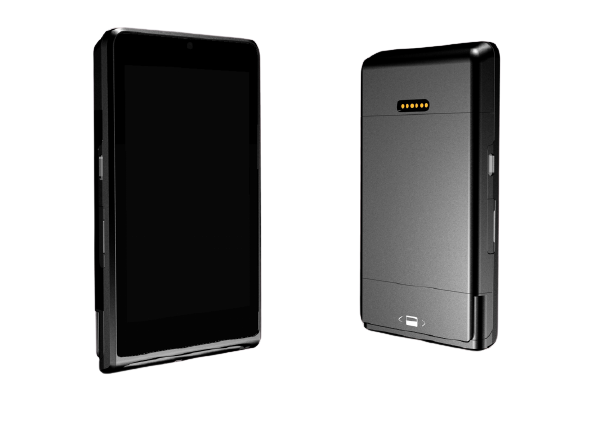

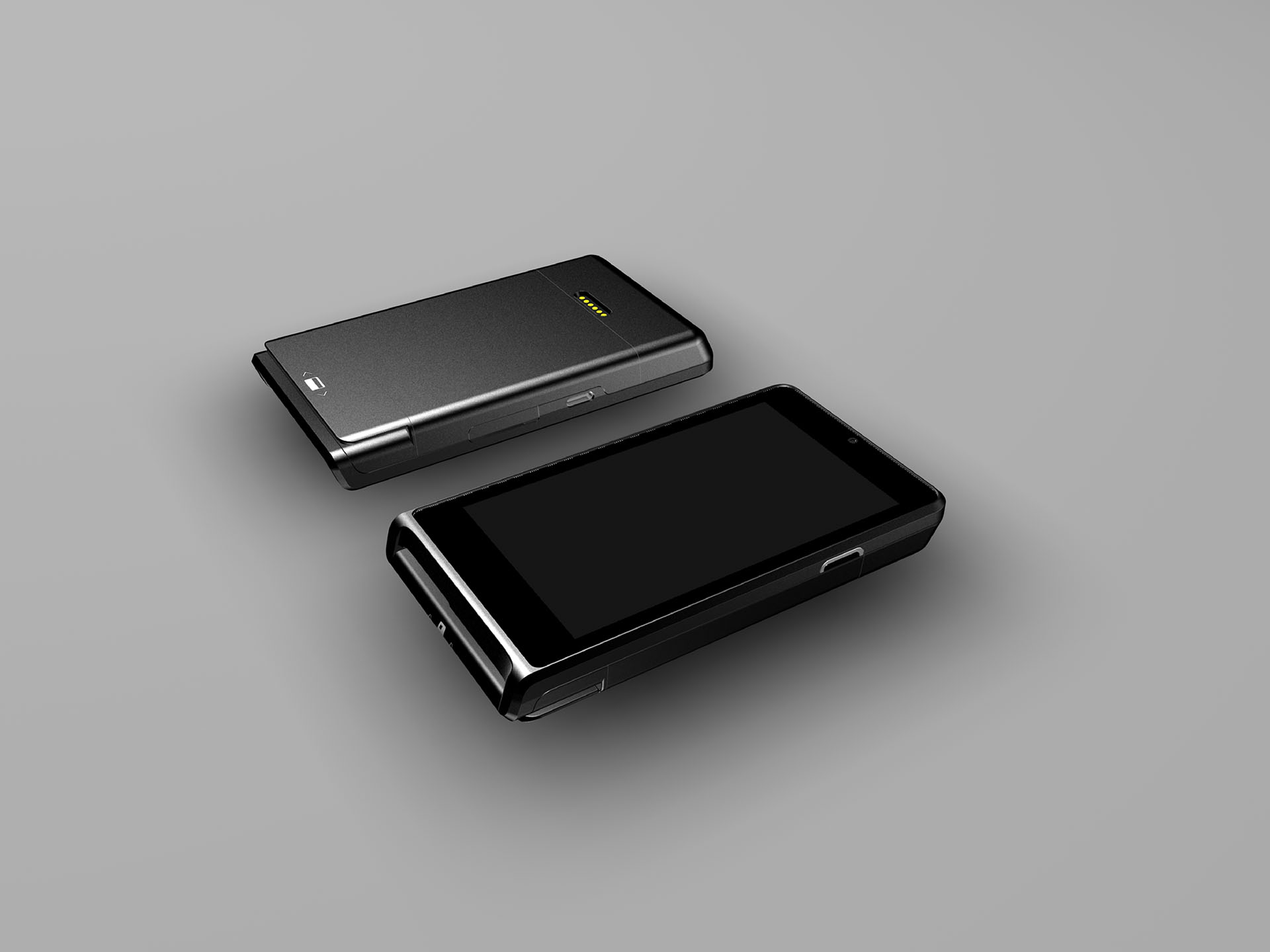

S1 MINI Android Terminal

Castles Technology’s newly designed S1MINI is a next generation mobile device offers multifunctional capabilities and optimizes the checkout process for your business.

download PDF

The S1MINI is based on a secure Android platform and comes with several features including 4G LTE, Wi-Fi, Bluetooth, and front camera.

The S1MINI is an extremely easy, safe and secure for merchants looking for a next generation payment device.

Technical specifications

Processor	Cortex A53 Quad-Core 1.3GHz + Secure MCU
Memory	Flash/RAM 16GB/2GB
Operating System	Android 10
Display	4”TFT Color Display with Capacitive Touch screen
Card Reader	Smart Card, Contactless, SIM, SAM
Communication Interface Options	Wire, Wireless
Audio	Speaker
Keypad	PIN on Glass
Camera	2MP Front Camera
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto library
Crypto	TRNG \| DES \| T’DES \| AES \| RSA \| MK/SK \| DUKPT
Power Supply	DC 5V/2A

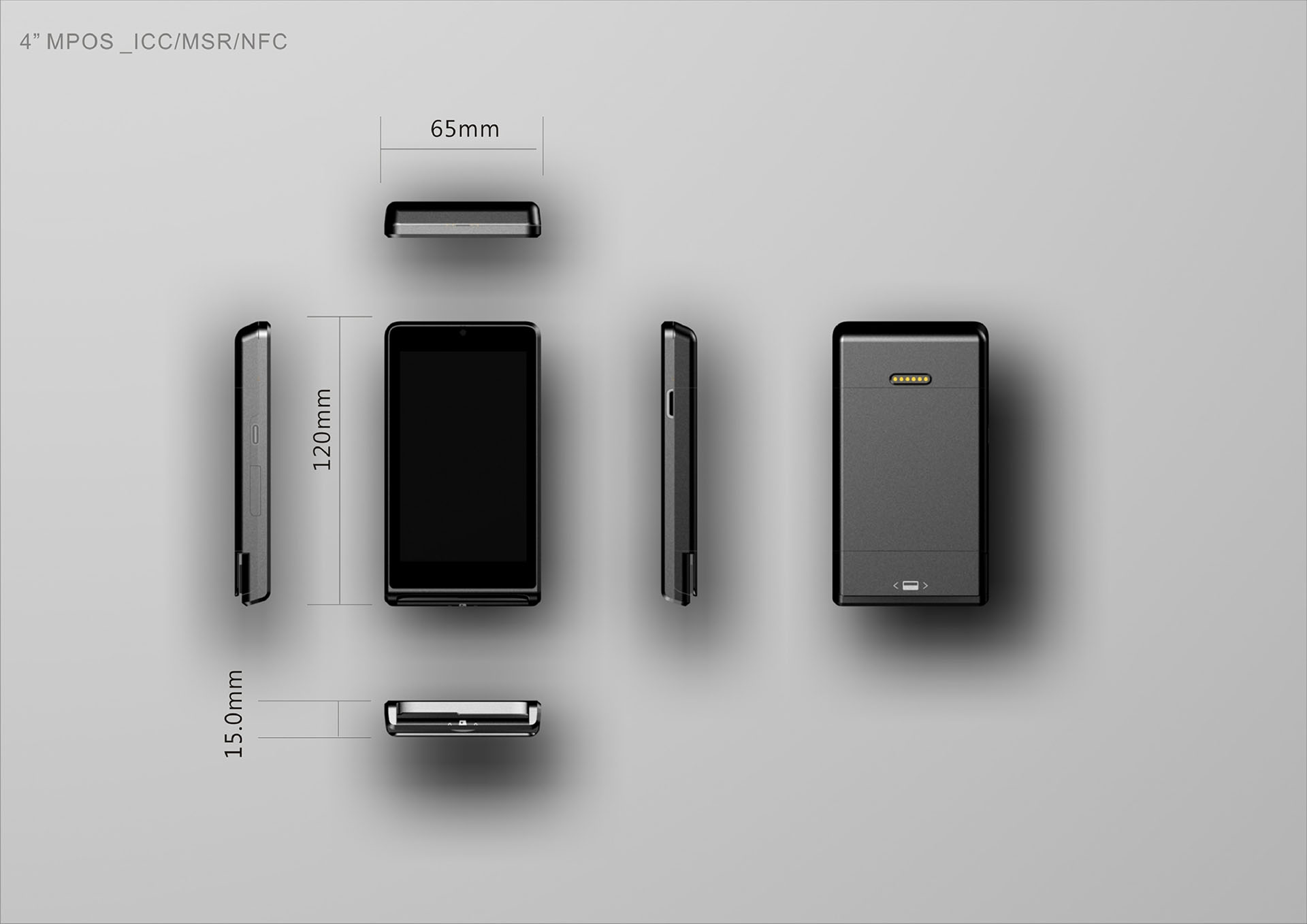

Dimensions (L x W x H)	119mm x 65mm x 15mm
Weight	150 g
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 6.x \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| J/Speedy \| FeliCa \| QuickPass \|TQM
Optional Accessories	Stylus Pen, Charging Cradle, Bracket
