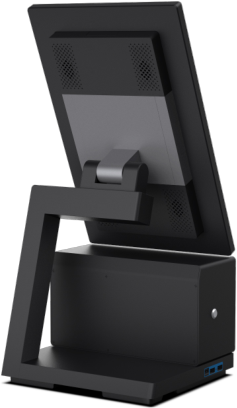

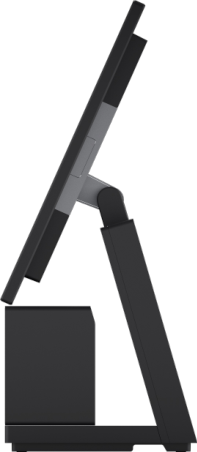

S2F – Hybrid POS/Selfcheckout

Meet S2F – a new form of SCO based on our best-seller S2P.

  • Meet S2F – a new form of SCO based on our best-seller S2P.
  • More stylish, more flexible, high-performance, full-featured
  • Meet the functional needs of small spaces
  • Concise and elegant lines, in line with the business tone
Technical specifications:
Windows 10 IOT - LINUX Android 9.0
Intel® Celeron 3865U/3867U, clock speed 1.8G, Dual-core
Intel® Core i3-7100U, clock speed 2.4G, Dual-core
Intel® Core i5-8250U, clock speed 1.6G, Qual-core		 HOST CPU Rockchip RK3399, Dual-core Cortex-A72 up to
1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
DDR4 SO-DIMM slot x 1 default 4GB, max. 16GB HOST MEMORY LPDDR3 4GB
M.2 2280 slot x 2 SSD default 128G, max. 512GB HOST CAPACITY eMMC 32GB
Support 10/100/1000Mbps Ethernet
Support 2.4G/5G WiFi, 802.11 b/g/n/ac agreement.		 HOST NETWORK Support 10/100/1000Mbps and Ethernet
Support 2.4G WiFi, Wi-Fi 802.11b/g/n agreement.
15.6", resolution 1920*1080 MAIN SCREEN DISPLAY 15.6", resolution 1920*1080
Capacitive ten-point touch screen, Flat surface,
Scratchproof, dustproof, waterproof		 MAIN SCREEN TOUCH SCREEN Capacitive ten-point touch screen, Flat surface,
Scratchproof, dustproof, waterproof
15" TFT LCD, resolution 1024*768
15.6" TFT LCD, resolution 1920*1080		 SECOND SCREEN (Optional) DISPLAY 15.6", resolution 1920*1080
Capacitive ten-point touch screen, Flat surface,
Scratchproof, dustproof, waterproof		 SECOND SCREEN (Optional) TOUCH SCREEN Capacitive ten-point touch screen, Flat surface,
Scratchproof, dustproof, waterproof
2W * 2 AUDIO SPEAKER 2W * 2
USB 3.0 * 2,24V Power USB * 1,12V Power USB * 3, TYPE-C * 1, com * 4,
LAN * 1, DP * 1,24V cash drawer * 1		 INTERFACE USB 3.0 * 2,24V Power USB * 1,12V Power USB * 3, TYPE-C * 1, com * 4,
LAN * 1, DP * 1,24V cash drawer * 1
Desktop adapter input AC 110-230V 50/60HZ, Output DC 24V 5A POWER Desktop adapter input AC 110-230V 50/60HZ, Output DC 24V 5A
Model: Thermal direct line
Speed: 250 mm/s (max)
Print length: 150KM		 PRINTER Paper: width 80mm, 58mm
Print width: 72mm(max)
Cutter life: 1500,000times
Pixer: 1280 x 800 pixel
Movement Tolerance: Up to 2.5 m/s for the best focus, UPC 13mil code 		SCANNER Pixer: 1280 x 800 pixel
Movement Tolerance: Up to 2.5 m/s for the best focus, UPC 13mil code
Supports 1,2,3 tracks, conforms to ISO 7811 / 7812 standard, decoding mode F2F (FM), and head life of 800000 times MSR Supports 1,2,3 tracks, conforms to ISO 7811 / 7812 standard, decoding mode F2F (FM), and head life of 800000 times
