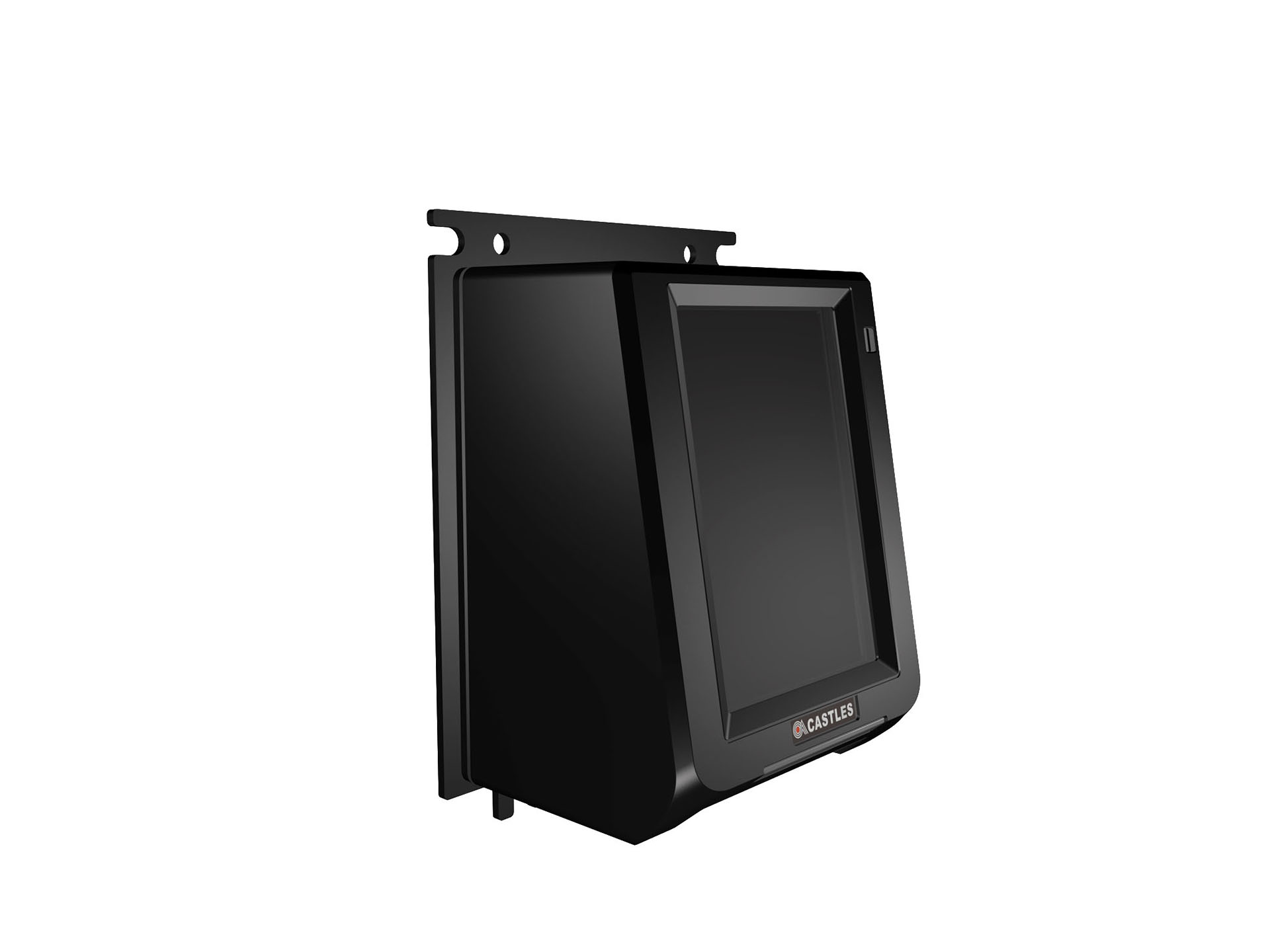

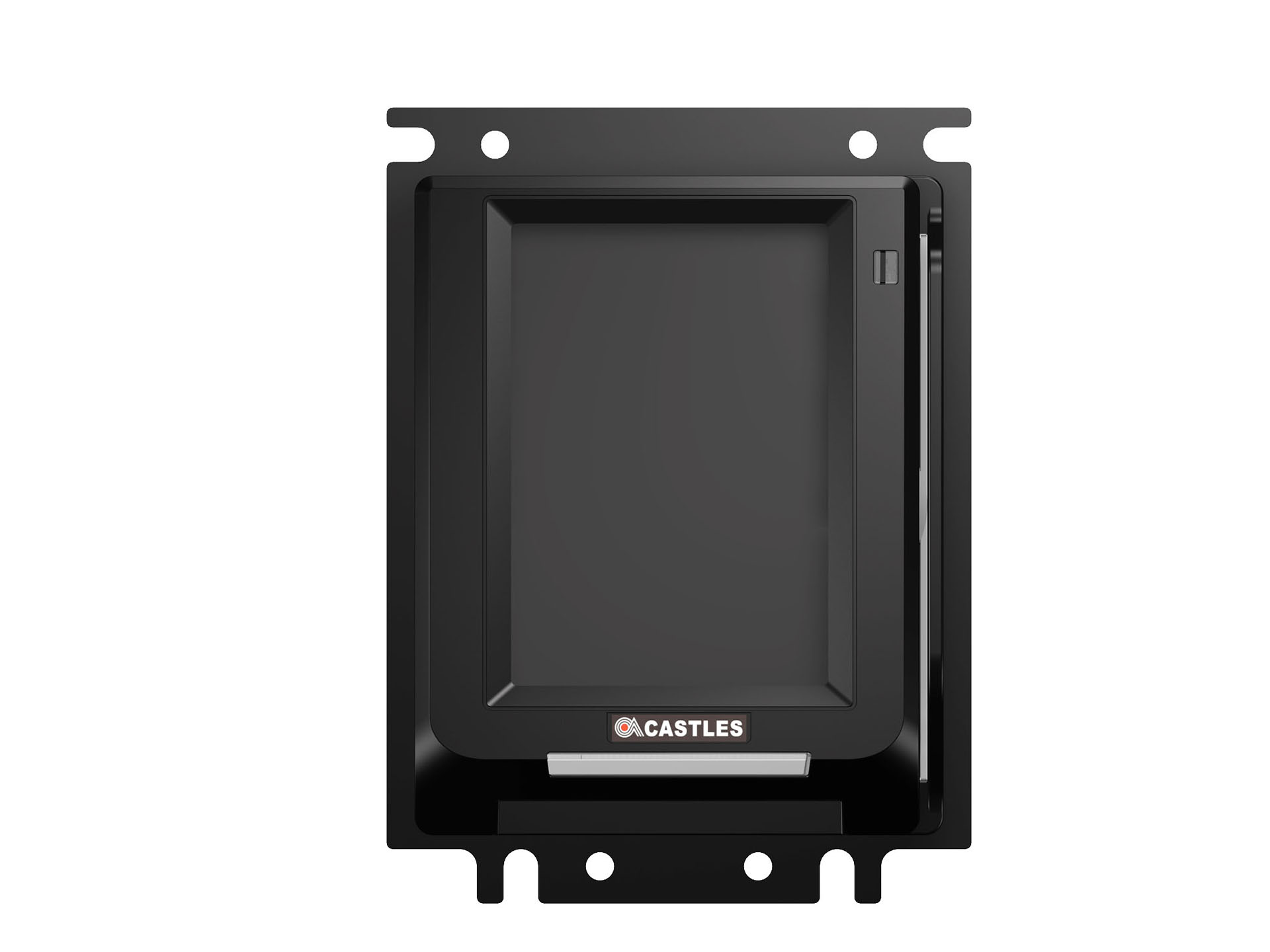

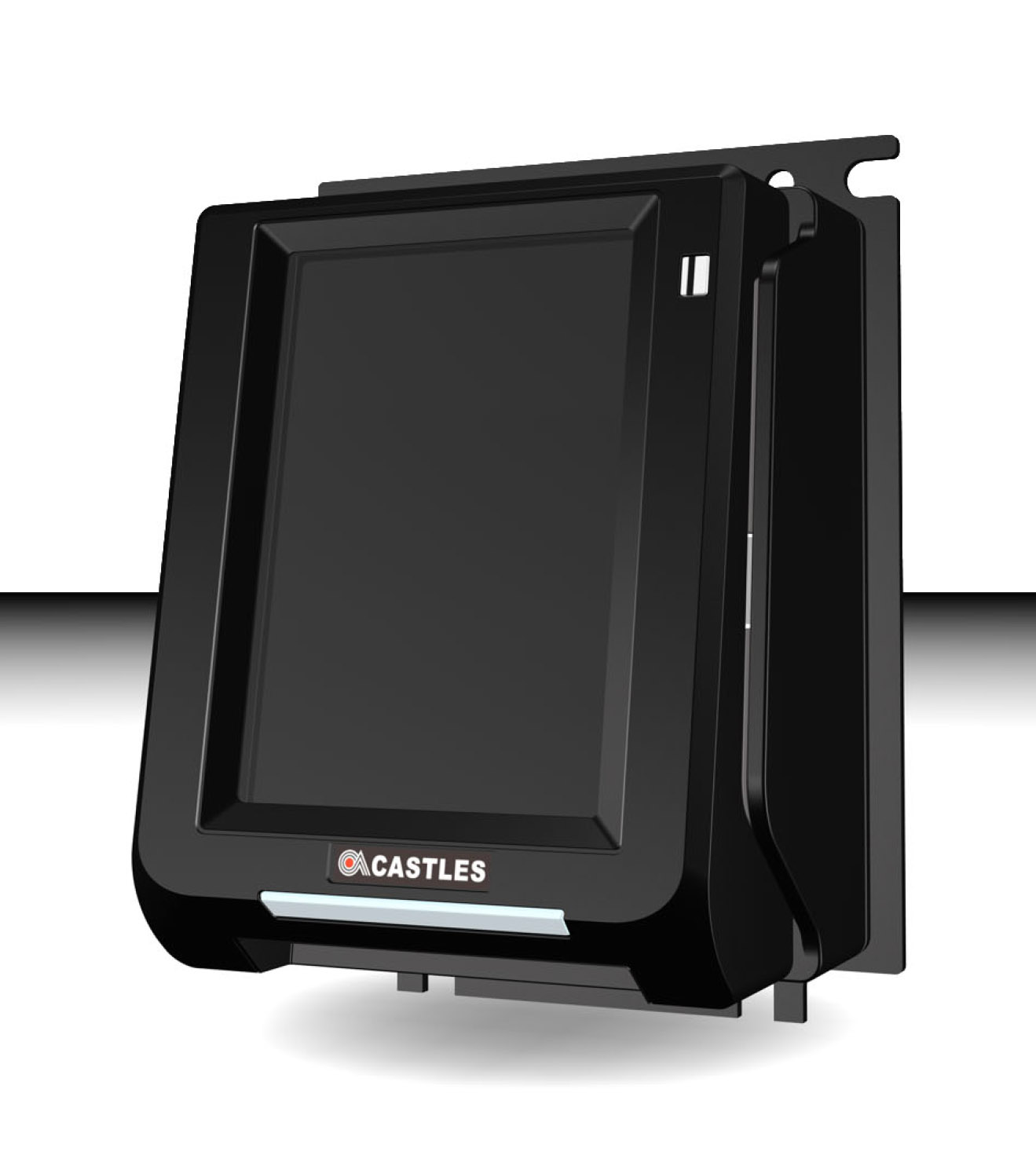

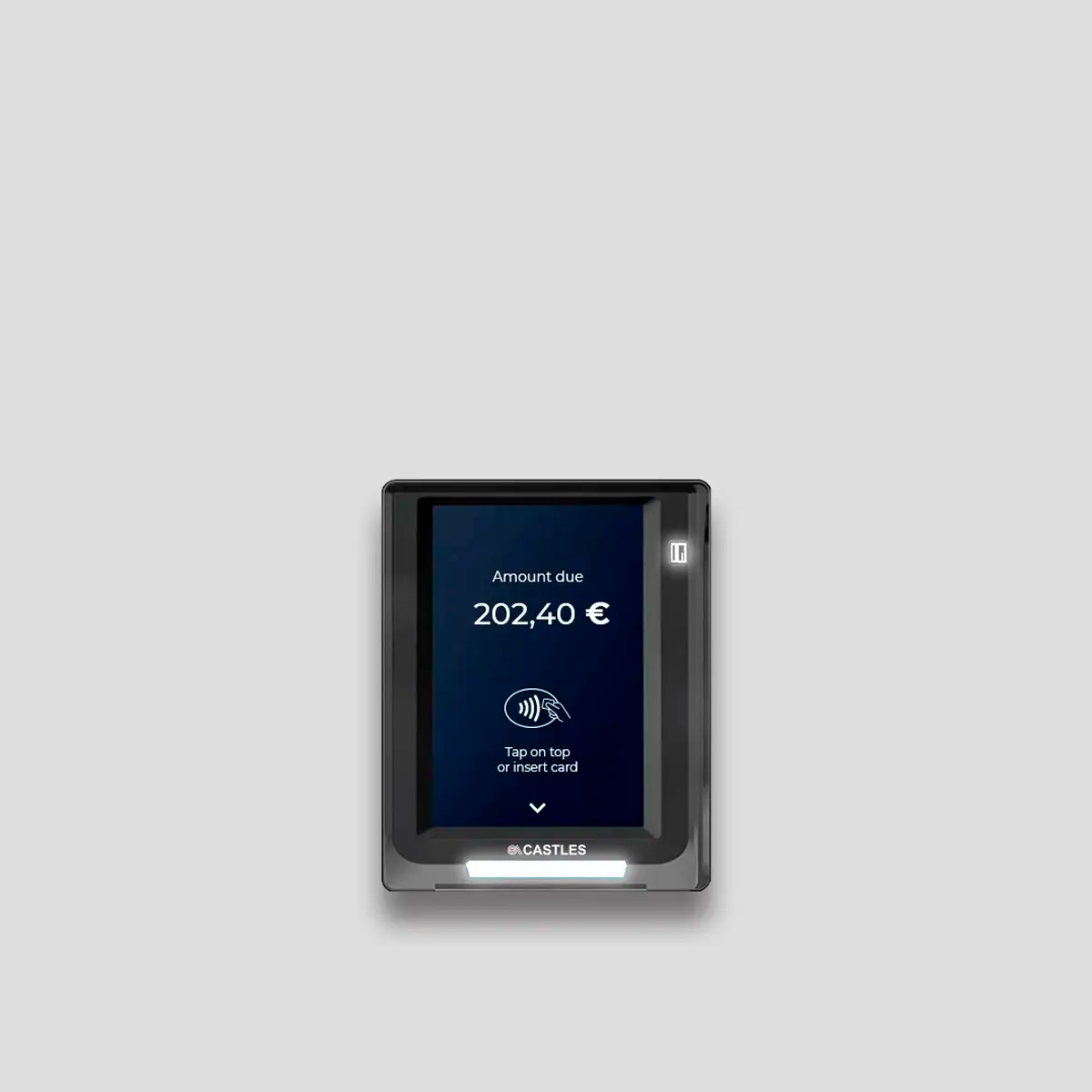

U1F Linux Terminal

Castles Technology’s cashless card reader offers an all-in-one solution with fully integrated telemetry in a sleek package, ideal for unattended payment needs such as vending, ticketing, multimedia kiosks, public transportation, laundromats and any other self service solutions.

download PDF

The U1F is based on a secure Linux platform and has integrated PIN pad, magnetic stripe, chip and contactless card reader functions, it’s a comprehensive payment solution that allows merchants to meet the growing market demand for self-service environments.

Technical specifications

Processor	32-bit Secure Microprocessor
Memory	Flash/RAM 256MB/128MB
Operating System	Linux
Display	3.5” Color TFT LCD with Capacitive Touch Screen
Card Reader	Magnetic Stripe, Smart Card, Contactless, SIM, SAM
Communication Interface Options	Wire, Wireless
Indicators	Virtual Contactless Indicator
Audio	Speaker
Keypad	Virtual Keypad / PIN on Glass
Software	SDK \| KMS \| TMS \| GDB \| CTOS library \| ISO 8583 library \| Crypto library
Crypto	TRNG \| DES \| T’DES \| AES \| RSA \| MK/SK \| DUKPT \| T’DES DUKPT
Power Supply	DC 9-48V
Dimensions (L x W x H)	106 x 85 x 62 (mm)
Weight	361 g
Operating Temperature	-20°C to 65°C
Storage Temperature	-35°C to 70°C
Operating Humidity	5% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Certification	PCI PTS 5.x \| EMV L1/L2 \| payWave \| PayPass \| ExpressPay \| D-PAS \| Interac Flash \| J/Speedy \| FeliCa \| QuickPass \| TQM \| PBOC L1/L2
Optional Accessories	Cables, 4G Antenna, BT Antenna
